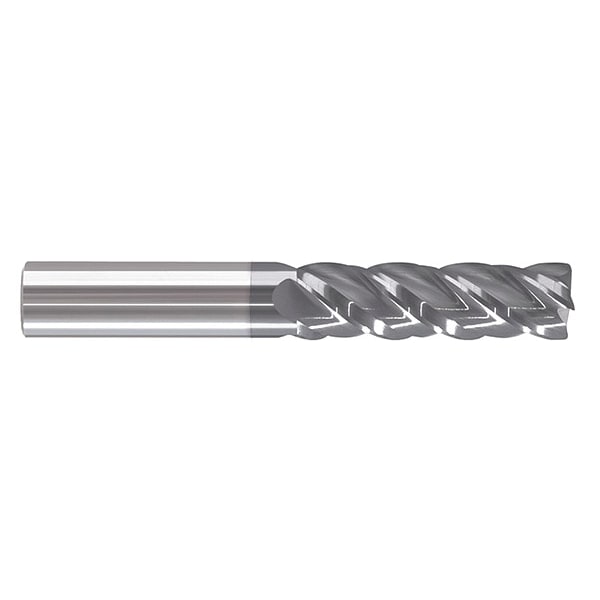

Cor Rad End Mill, 1/2", Carb, 0" rad
| Corner Radius | 0 in |
|---|---|
| Number of Flutes | 4 |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Finish | Bright |
| Grade | Carbide |
| Shank Dia. | 1/2 in |
| Overall Length | 6 in |
| Cutting Direction - Machining | Right Hand |
| Material Applications | Cast Iron, Stainless Steel, Steel, Super Alloy |
| Helix Angle | Variable |
| Spiral Direction | Right Hand |
| End Mill Application | Roughing/Finishing |
| Neck Dia. | 0 in |
| Length of Cut | 3 in |
| Chamfer Width | 0.02 in |
| Number of Coolant Holes | 0 |
| Material - Machining | Carbide |
| List Number | 284 |
| Secondary Material Application | Alloy Steel |
| Coolant Fed | Non-Coolant Through |
| Drilling Tool Configuration | Individual |
| Primary Material Application ISO Code | M, S |
| For Material Hardness | Less Than240- Greater Than240HB, Less Than28-65Rc |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Milling Dia. | 1/2 in |
| Neck Length | 0 in |
| End Mill Style | Corner Radius |
| Series | Fusion |
| Measurement System | Fractional Inch |
| Material Grade - Machining | C2 Micrograin |
| Item | Corner Radius End Mill |
| Secondary Material Application ISO Code | P, M, K |
| Finish - Machining | AlTiCrN |
| Shank Type - Machining | Straight |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Package Quantity | 1 |
