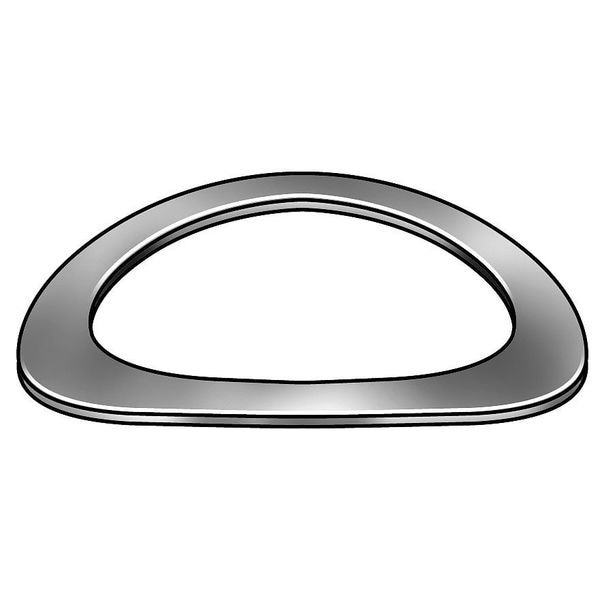

Disc Spring, Curved, 0.3125,301 SS, PK10
| Item | Disc Spring |
|---|---|
| System of Measurement | Inch |
| Material | 301/302 Stainless Steel |
| Thickness | 0.013 in |
| Overall Height | 0.08 in |
| Type | Curved |
| Max. Outside Dia. | 0.612 in |
| Deflection @ Load | 0.042 in |
| Min. Inside Dia. | 0.327 in |
| Load @ Deflection (Lbs.) | 9 |
| Meets/Exceeds | AISI Type 302 |
| For Hole Size | 0.625 |
| For Rod Size | 0.3125 |
| Standards | AISI Type 302 |
| Spring Rate | Not Applicable |
| Disc Type | Curved |
| Compatible Rod Size | 5/16 in |
| Calculated Load @ Flat | Not Applicable |
| Outside Diameter - Maximum | 0.61 in |
| Compatible Hole Diameter | 5/8 in |
| Inside Diameter - Minimum | 0.33 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 10 |
