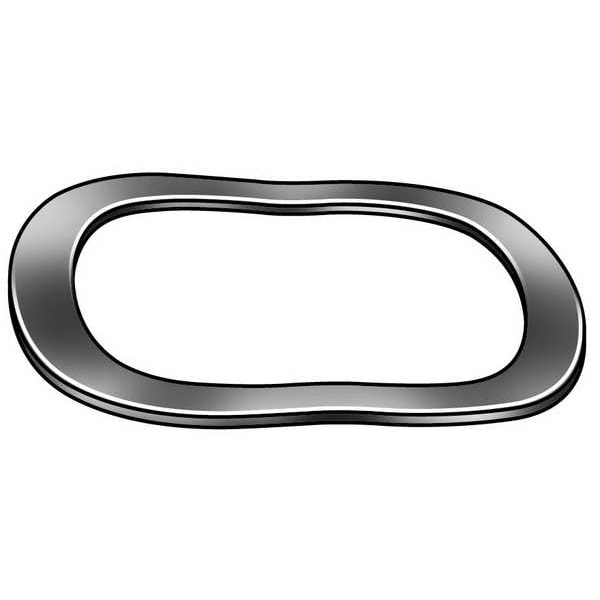

Disc Spring, Wave, 0.5, High Carb Stl, PK25
| Item | Wave Disc Spring |
|---|---|
| System of Measurement | Inch |
| Material | Carbon Steel |
| Thickness | 0.009 in |
| Overall Height | 0.05 in |
| Type | Wave |
| Max. Outside Dia. | 0.734 in |
| Deflection @ Load | 0.02 in |
| Min. Inside Dia. | 0.531 in |
| Load @ Deflection (Lbs.) | 4-7 |
| For Hole Size | 0.75 |
| Meets/Exceeds | ASTM-A684 |
| For Rod Size | 0.5 |
| Spring Rate | Not Applicable |
| Outside Diameter - Maximum | 0.73 in |
| Calculated Load @ Flat | Not Applicable |
| Standards | ASTM A684 |
| Inside Diameter - Minimum | 0.53 in |
| Compatible Rod Size | 1/2 in |
| Compatible Hole Diameter | 3/4 in |
| Disc Type | Wave |
| Country of Origin (subject to change) | United States |
| Package Quantity | 25 |
