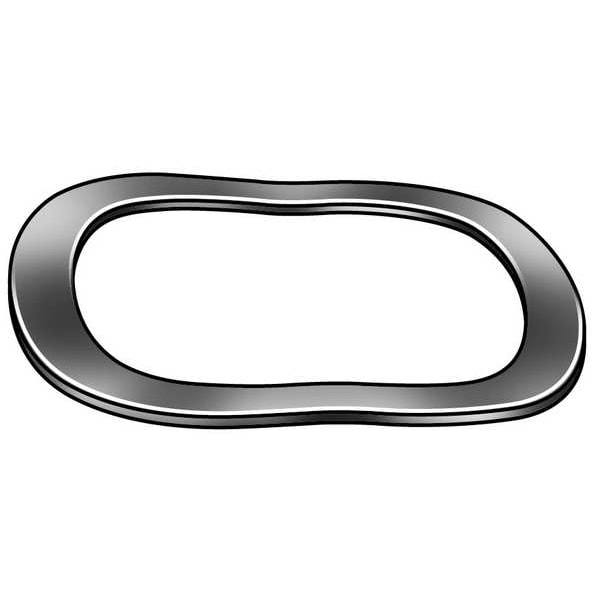

Disc Spring, Wave, 0.625, High CS, PK25
| Item | Wave Disc Spring |
|---|---|
| System of Measurement | Inch |
| Material | Carbon Steel |
| Thickness | 0.01 in |
| Overall Height | 0.07 in |
| Type | Wave |
| Max. Outside Dia. | 0.925 in |
| Deflection @ Load | 0.033 in |
| Min. Inside Dia. | 0.719 in |
| Load @ Deflection (Lbs.) | 6-9 |
| For Hole Size | 1 |
| Meets/Exceeds | ASTM-A684 |
| For Rod Size | 0.625 |
| Spring Rate | Not Applicable |
| Disc Type | Wave |
| Calculated Load @ Flat | Not Applicable |
| Outside Diameter - Maximum | 0.93 in |
| Inside Diameter - Minimum | 0.72 in |
| Compatible Rod Size | 5/8 in |
| Standards | ASTM A684 |
| Compatible Hole Diameter | 1 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 25 |
