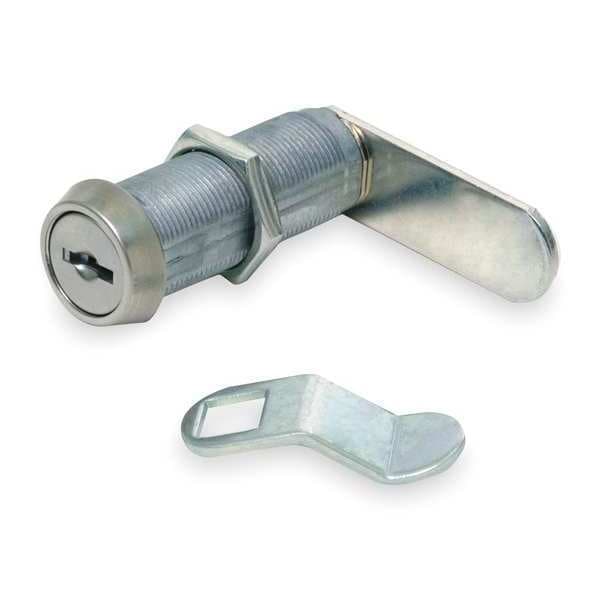

Disc Tumbler Keyed Cam Lock, Stainless steel, 17/32 in For Door Thickness, 2 Number of Keys
| For Door Thickness (In.) | 17/32 |
|---|---|
| Item | Disc Tumbler Keyed Cam Lock |
| Key Type | Alike |
| Keying | Keyed Alike |
| Finish | Stainless steel |
| Opens With | Key |
| Mounting Hole Dia. | 3/4 in |
| Number of Keys | 2 |
| Cam Lock Type | Keyed |
| Cam Width (In.) | 5/8 |
| Head Dia. (In.) | 7/8 |
| Key Number | C346A |
| Cam Length (In.) | 1-1/4, 1-3/4 |
| Cam Type | Straight, Offset |
| For Material Thickness | 17/32 in |
| Offset (In.) | 0, 3/8 |
| Unlock Turn Direction | Counterclockwise |
| Unlocking Radius (Deg.) | 90, 180 |
| Includes | 2 Cams, Hardware |
| Package Quantity | 1 |
| Weather Resistant | No |

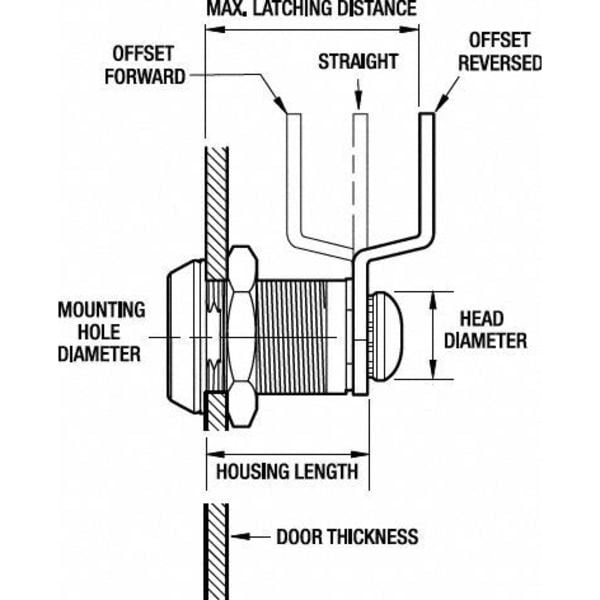

| Max. Latching Distance (In.) | 1-1/4 |
| Mounting Hole Dia. (In.) | 3/4 |
| Number of Pins | 0 |
| Lock Body Material | Stainless Steel |
| Interchangeable Core | No |
| Body Color | Silver |
| Head Dia. | 7/8 in |
| Offset Cam Length | 1-3/4 in |
| Straight Cam Width | 5/8 in |
| Straight Cam Length | 1-1/4 in |
| Offset Cam Width | 5/8 in |
| Security Level | General Security |
| Key Code | C346A |
| Number of Locks in Pack | 1 |
| Latching Distance | 1-1/4 in |
| Mounting Hardware Required | No |
| For Material | Wood, Metal |
| Includes Mounting Hardware | Yes |
| Keyed Cam Lock Type | Disc Tumbler Keyed Cam Lock |
| Lock Body Finish | Chrome-Plated |
| Country of Origin (subject to change) | China |
