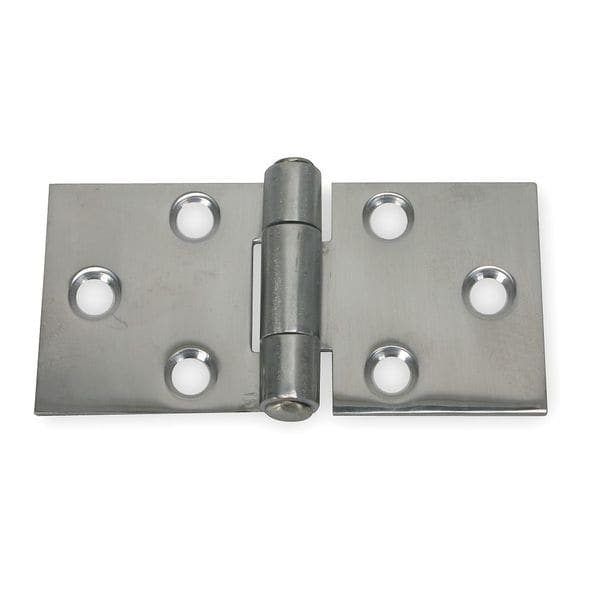

Door and Butt Hinge, Stainless Steel, Full Surface Mounting, 3 in Leaf W x 1 1/2 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 1-1/2 in |
| Door Leaf Thickness | 0.187 in |
| Door Leaf Width | 3 in |
| Finish | Bright Stainless Steel |
| Holes per Leaf | 3 |
| Material | Stainless Steel |
| Mounting | Full Surface |
| Orientation | Non Handed |
| Pin Dia. | 13/64 in |
| Range of Motion | 180 deg |
| Features | Corrosion Resistant; Ideal for Use in a Marine Environment; Non Removable Pin Type |
| Pin Type | Non-Removable |
| Holes | With |
| Hardware | Not included |
| Frame Leaf Height | 1-1/2 in |
| Item | Door and Butt Hinge |
| Frame Leaf Thickness | 0.187 in |
| Bearing Type | Plain |
| Frame Leaf Width | 3 in |
| Ligature Resistant | No |
| Hand Orientation | Non-Handed |
| Resistance Properties | Corrosion-Resistant |
| Pin Diameter | 3/16 in |
| Removable Pin | No |
| Mounting Style | Full Surface |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Number of Holes per Leaf | 3 |
| Range of Motion - Maximum | 180 deg |
| Corner Type | Square |
| Includes Hardware | Hardware Not Included |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
