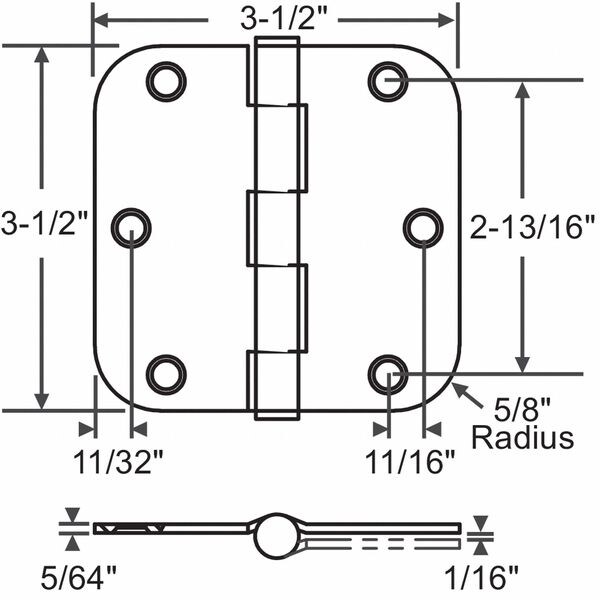

Door and Butt Hinge, Steel, Full Mortise Mounting, 3 1/2 in Leaf W x 3 1/2 in Leaf H, Satin Chrome
| Corners | Radius |
|---|---|
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 0.063 in |
| Door Leaf Width | 3-1/2 in |
| Finish | Satin Chrome |
| Holes per Leaf | 3 |
| Load Capacity | 100 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 160 deg |
| Required Door Thickness | 1-3/8 in |
| Features | Reversible Hinges |
| Item | Door and Butt Hinge |
| Frame Leaf Height | 3-1/2 in |
| Frame Leaf Width | 3-1/2 in |
| Ligature Resistant | No |
| Standards | ANSI/BHMA |
| Fire Rating - Door Hardware | 3 hr |
| Number of Wires | 0 |
| Hardware | Yes |
| Hinge Number | #1 |
| Bearing Type | Plain |
| Frame Leaf Thickness | 0.063 in |
| Pin Material | Steel |
| Pin Type | Removable |
| Holes | With |
| Overall Width | 3-1/2 in |
| Hand Orientation | Non-Handed |
| Pin Diameter | 5/16 in |
| Removable Pin | Yes |
| Number of Holes per Leaf | 3 |
| Corner Type | Radius |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 160 deg |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Minimum | 1-1/2 in |
| Fire Rating | 3 hr |
| Mounting Style | Full Mortise |
| Door Thickness - Maximum | 1-3/8 in |
| Corner Radius | 5/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
