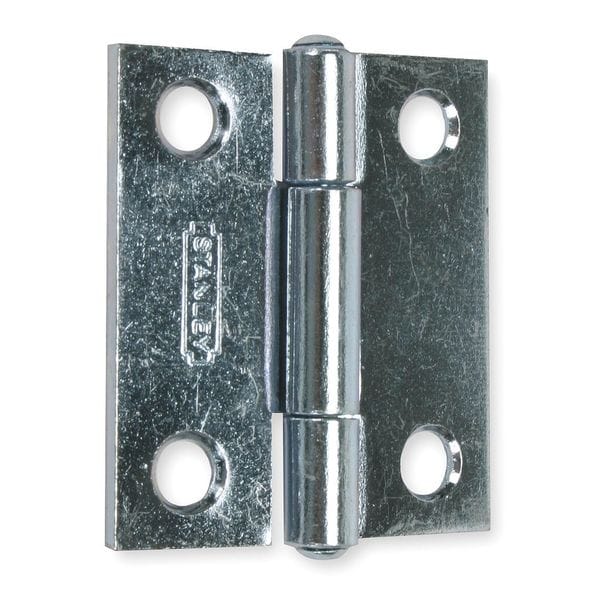

Door and Butt Hinge, Steel, Full Surface Mounting, 5/8 in Leaf W x 1 1/2 in Leaf H, zinc plated
| Corners | Square |
|---|---|
| Door Leaf Height | 1-1/2 in |
| Door Leaf Thickness | 0.045 in |
| Door Leaf Width | 1-3/8 in |
| Finish | zinc plated |
| Holes per Leaf | 2 |
| Load Capacity | Not Applicable |
| Material | Steel |
| Mounting | Full Surface |
| Orientation | Non Handed |
| Pin Dia. | 3/16 in |
| Range of Motion | 270 deg |
| Features | Pre-Plated Countersunk Holes Arranged in a Half-Moon Shape, Concealed Bearings |
| Frame Leaf Height | 1-1/2 in |
| Pin Material | Steel |
| Holes | With |
| Hardware | Yes |
| Pin Type | Non-Removable |
| Bearing Type | Plain |
| Frame Leaf Width | 5/8 in |
| Ligature Resistant | No |
| Frame Leaf Thickness | 0.045 in |
| Item | Door and Butt Hinge |
| Hinge Number | Not Applicable |
| Overall Knuckle Height | Not Applicable |
| Standards | Not Applicable |
| Overall Width | 1-3/8 in |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | Not Applicable |
| Mounting Style | Full Surface |
| Fire Rating | Not Applicable |
| Resistance Properties | Corrosion-Resistant |
| ANSI/BHMA Finish | Zinc-Plated |
| Corner Radius | Not Applicable |
| Corner Type | Square |
| Range of Motion - Maximum | 270 deg |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 2 |
| Removable Pin | No |
| Pin Diameter | 3/16 in |
| Door Thickness - Minimum | 5/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
