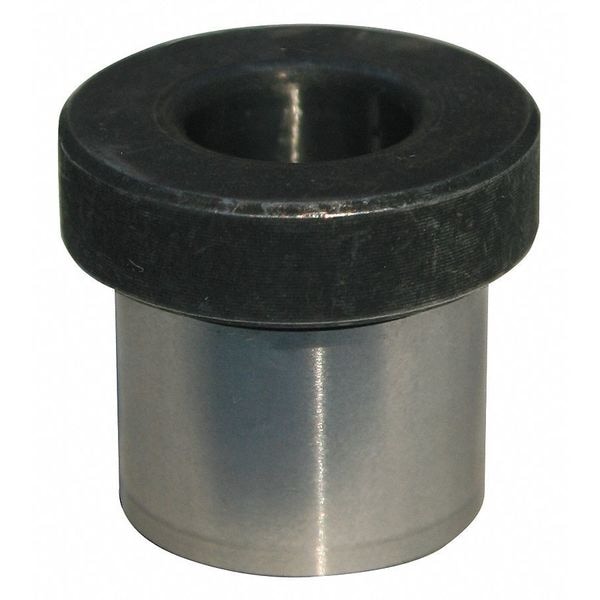

Drill Bushing, H, Drill Size 1/16 In
| Concentricity Tolerance | .0003" T.I.R. Max |
|---|---|
| Bushing Head Type | Headed |
| Inside Dia. | 1/16 in |
| Head Thickness | 3/32" |
| Item | Headed Press-Fit Drill Bushing (H) |
| Hardness | Rc 62-64 |
| Head Material | High Speed Steel |
| Length under Head | 3/4 in |
| Outside Dia. Tolerance | +0.0016 in /+0.0006 in |
| Material | 52100 Thru Hardened |
| Decimal Equivalent | 0.0625 |
| Bushing Type | Head Press Fit |
| Head Dia. | 5/16 in |
| Drill Size | 1/16 in |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Size- Decimal | 1/16" (0.0625) |
| Overall Length | 3/4 in |
| Material - Machining | High Speed Steel |
| Rockwell Hardness | RC 62-64 |
| Finish | High Speed Steel |
| Measurement System | Fractional Inch |
| Drill Bushing Wall Type | Thin Wall |
| Outside Dia. | 3/16 in |
| Head Type | Yes |
| Heat Treatment | Through Hardened |
| Bushing Code | H |
| Size - Decimal | 25/32 in to 0.7812 |
| Package Quantity | 1 |
