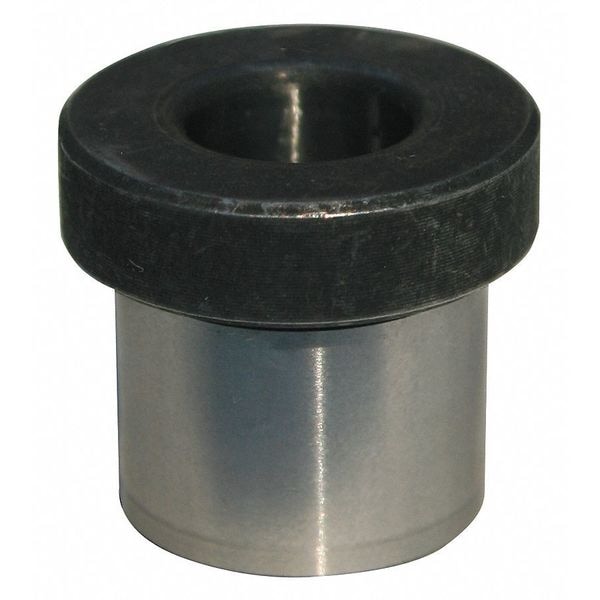

Drill Bushing, H, Drill Size # 20
| Length under Head | 3/4 in |
|---|---|
| Drill Bushing Wall Type | Standard Wall |
| Material - Machining | High Speed Steel |
| Outside Dia. Tolerance | +0.0016 in /+0.0013 in |
| Outside Dia. | 5/16 in |
| Measurement System | Wire |
| Head Material | High Speed Steel |
| Drill Size | #20 |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Decimal Equivalent | 0.161 |
| Finish | High Speed Steel |
| Head Thickness | 1/8" |
| Bushing Head Type | Headed |
| Rockwell Hardness | RC 62-64 |
| Item | Headed Press-Fit Drill Bushing (H) |
| Size- Decimal | #20 (0.1610) |
| Inside Dia. | #20 |
| Head Dia. | 27/64 in |
| Heat Treatment | Through Hardened |
| Overall Length | 3/4 in |
| Bushing Type | Head Press Fit |
| Hardness | Rc 62-64 |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Material | 52100 Thru Hardened |
| Head Type | Yes |
| Bushing Code | H |
| Size - Decimal | 13/64 in to 0.2031 |
| Package Quantity | 1 |
