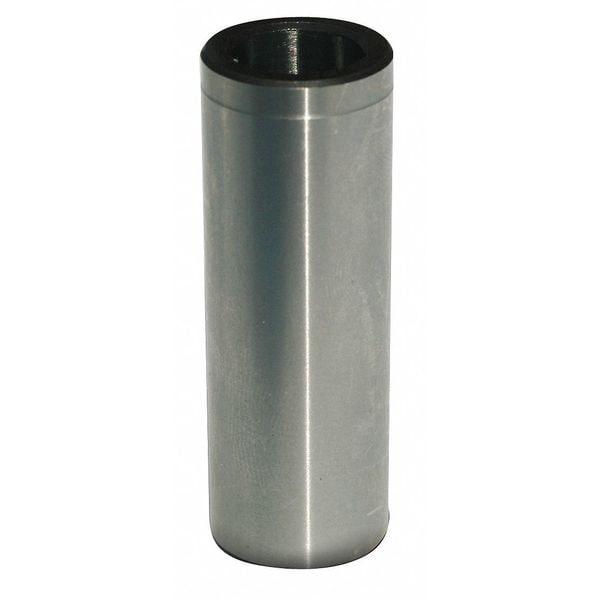

Drill Bushing, P, Drill Size 5.2mm
| Drill Size | 5.2 mm |
|---|---|
| Rockwell Hardness | RC 62-64 |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Inside Dia. | 5.20 mm |
| Finish | High Speed Steel |
| Overall Length | 3/4 in |
| Outside Dia. | 1/2 in |
| Material | 52100 Thru Hardened |
| Bushing Head Type | Headless |
| Item | Press-Fit Drill Bushing (P) |
| Head Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Hardness | Rc 62-64 |
| Drill Bushing Wall Type | Standard Wall |
| Measurement System | Metric |
| Bushing Type | Headless Press Fit |
| Outside Dia. Tolerance | +0.0014 in /+0.0017 in |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Head Type | No |
| Heat Treatment | Through Hardened |
| Decimal Equivalent | 0.2047 |
| Bushing Code | PM |
| Size - Decimal | 3/32 in to 0.0938 |
| Package Quantity | 1 |
