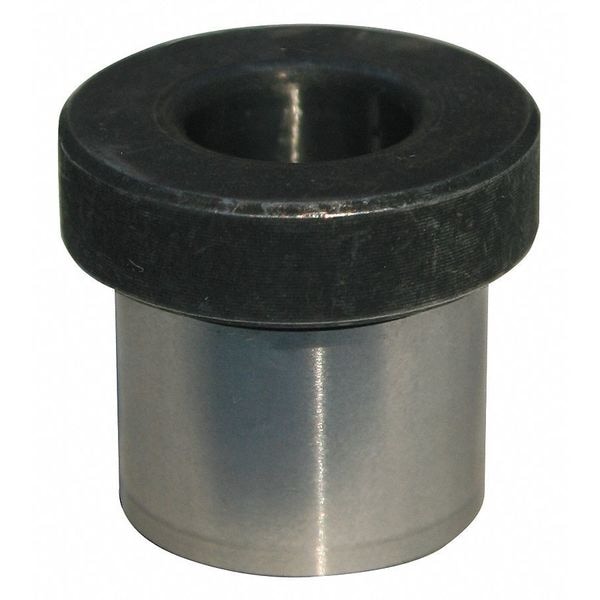

Drill Bushing, Type H, Drill Size 1-25/64
| Outside Dia. | 1-3/4 in |
|---|---|
| Inside Dia. | 1 25/64 in |
| Concentricity Tolerance | .0005" T.I.R. max |
| Head Dia. | 1-63/64 in |
| Material | 52100 Thru Hardened |
| Outside Dia. Tolerance | +0.0023 in /+0.0019 in |
| Overall Length | 3/4 in |
| Head Thickness | 3/8" |
| Hardness | Rc 62-64 |
| Drill Size | 1-25/64 in |
| Rockwell Hardness | RC 62-64 |
| Material - Machining | High Speed Steel |
| Finish | High Speed Steel |
| Head Material | High Speed Steel |
| Bushing Head Type | Headed |
| Measurement System | Fractional Inch |
| Length under Head | 3/4 in |
| Inside Dia. Tolerance | +0.0002 in /+0.0006 in |
| Drill Bushing Wall Type | Standard Wall |
| Item | Headed Press-Fit Drill Bushing (H) |
| Heat Treatment | Through Hardened |
| Bushing Type | Head Press Fit |
| Head Type | Yes |
| Decimal Equivalent | 1.3906 |
| Bushing Code | H |
| Size - Decimal | 1-1/64 in to 1.0156 |
| Package Quantity | 1 |
