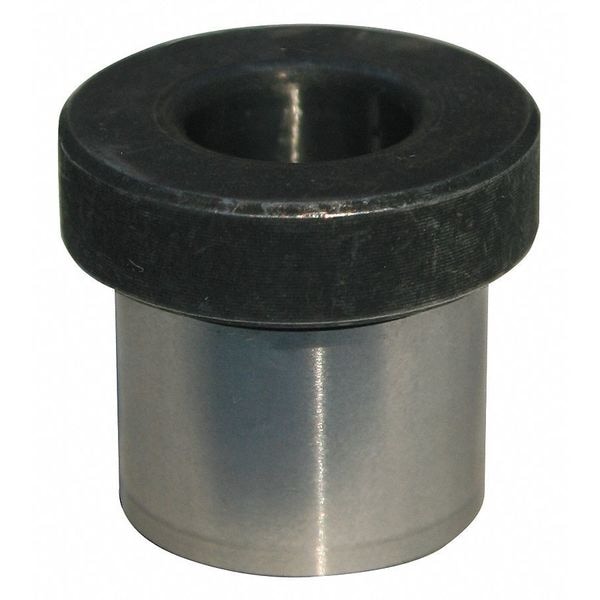

Drill Bushing, Type H, Drill Size 13/16 In
| Rockwell Hardness | RC 62-64 |
|---|---|
| Inside Dia. | 13/16 in |
| Size- Decimal | 13/16" (0.8125) |
| Hardness | Rc 62-64 |
| Length under Head | 1/2 in |
| Material | 52100 Thru Hardened |
| Drill Size | 13/16 in |
| Outside Dia. | 1-1/8 in |
| Heat Treatment | Through Hardened |
| Decimal Equivalent | 0.8125 |
| Drill Bushing Wall Type | Thin Wall |
| Material - Machining | High Speed Steel |
| Item | Headed Press-Fit Drill Bushing (H) |
| Outside Dia. Tolerance | +0.0020 in /+0.0017 in |
| Head Thickness | 3/16" |
| Measurement System | Fractional Inch |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Bushing Head Type | Headed |
| Finish | High Speed Steel |
| Overall Length | 1/2 in |
| Concentricity Tolerance | .0005" T.I.R. max |
| Bushing Type | Head Press Fit |
| Head Material | High Speed Steel |
| Head Dia. | 1-5/16 in |
| Head Type | Yes |
| Bushing Code | H |
| Size - Decimal | #8 - 0.1990 |
| Package Quantity | 1 |
