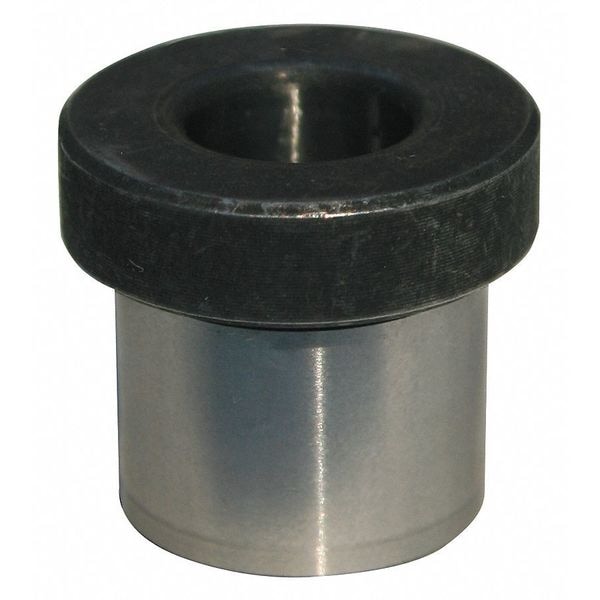

Drill Bushing, Type H, Drill Size 1/4 In
| Bushing Type | Head Press Fit |
|---|---|
| Head Material | High Speed Steel |
| Material | 52100 Thru Hardened |
| Rockwell Hardness | RC 62-64 |
| Bushing Head Type | Headed |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Outside Dia. | 13/32 in |
| Drill Size | 1/4 in |
| Measurement System | Fractional Inch |
| Drill Bushing Wall Type | Standard Wall |
| Overall Length | 1/4 in |
| Finish | High Speed Steel |
| Heat Treatment | Through Hardened |
| Decimal Equivalent | 0.25 |
| Inside Dia. Tolerance | +0.0002 in /+0.0006 in |
| Inside Dia. | 1/4 in |
| Head Thickness | 5/32" |
| Head Dia. | 1/2 in |
| Outside Dia. Tolerance | +0.0015 in /+0.0012 in |
| Hardness | Rc 62-64 |
| Item | Headed Press-Fit Drill Bushing (H) |
| Length under Head | 1/4 in |
| Material - Machining | High Speed Steel |
| Size- Decimal | 1/4" (0.2500) |
| Head Type | Yes |
| Bushing Code | H |
| Size - Decimal | B - 0.2380 |
| Package Quantity | 1 |
