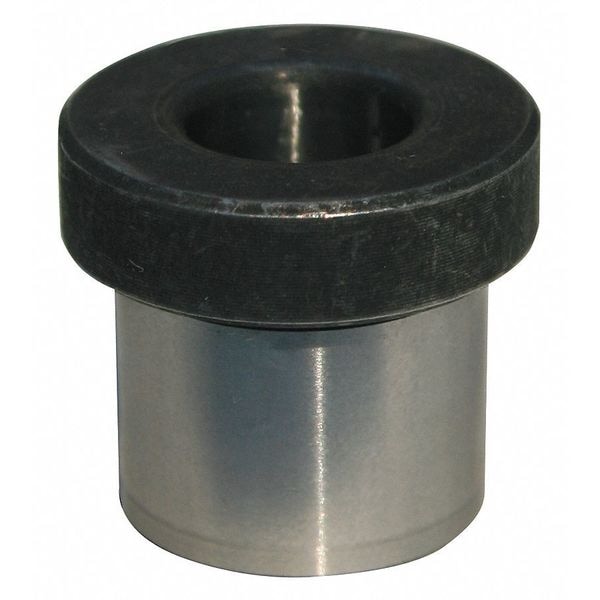

Drill Bushing, Type H, Drill Size 3/4 In
| Drill Bushing Wall Type | Standard Wall |
|---|---|
| Head Dia. | 1-3/16 in |
| Bushing Head Type | Headed |
| Head Thickness | 3/16" |
| Item | Headed Press-Fit Drill Bushing (H) |
| Material | 52100 Thru Hardened |
| Drill Size | 3/4 in |
| Rockwell Hardness | RC 62-64 |
| Bushing Type | Head Press Fit |
| Length under Head | 1 in |
| Hardness | Rc 62-64 |
| Outside Dia. Tolerance | +0.0018 in /+0.0015 in |
| Head Material | High Speed Steel |
| Inside Dia. | 3/4 in |
| Decimal Equivalent | 0.75 |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Size- Decimal | 3/4" (0.7500) |
| Heat Treatment | Through Hardened |
| Overall Length | 1 in |
| Measurement System | Fractional Inch |
| Concentricity Tolerance | .0005" T.I.R. max |
| Finish | High Speed Steel |
| Outside Dia. | 1 in |
| Material - Machining | High Speed Steel |
| Head Type | Yes |
| Bushing Code | H |
| Size - Decimal | 3/4 in to 0.75 |
| Package Quantity | 1 |
