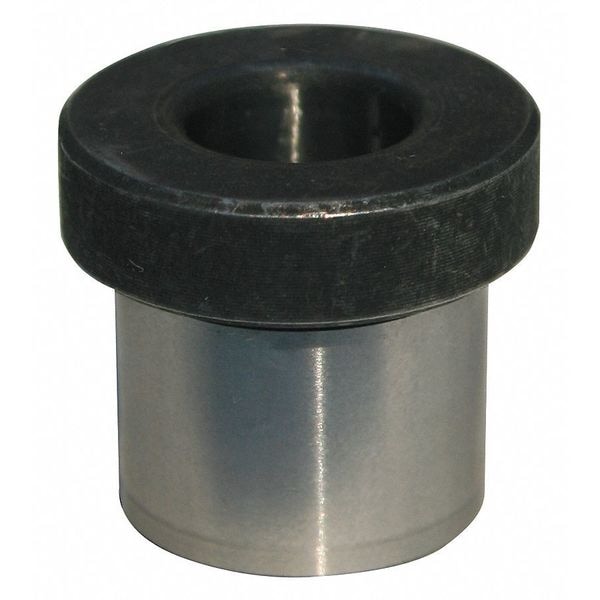

Drill Bushing, Type H, Drill Size F
| Finish | High Speed Steel |
|---|---|
| Bushing Type | Head Press Fit |
| Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Hardness | Rc 62-64 |
| Drill Bushing Wall Type | Standard Wall |
| Rockwell Hardness | RC 62-64 |
| Decimal Equivalent | 0.257 |
| Size- Decimal | F (0.2570) |
| Item | Headed Press-Fit Drill Bushing (H) |
| Head Thickness | 5/32" |
| Overall Length | 1-3/4 in |
| Inside Dia. | F |
| Material | 52100 Thru Hardened |
| Drill Size | F |
| Measurement System | Letter |
| Outside Dia. Tolerance | +0.0015 in /+0.0012 in |
| Outside Dia. | 13/32 in |
| Head Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Head Dia. | 1/2 in |
| Bushing Head Type | Headed |
| Length under Head | 1-3/4 in |
| Head Type | Yes |
| Heat Treatment | Through Hardened |
| Bushing Code | H |
| Size - Decimal | 43/64 in to 0.6719 |
| Package Quantity | 1 |
