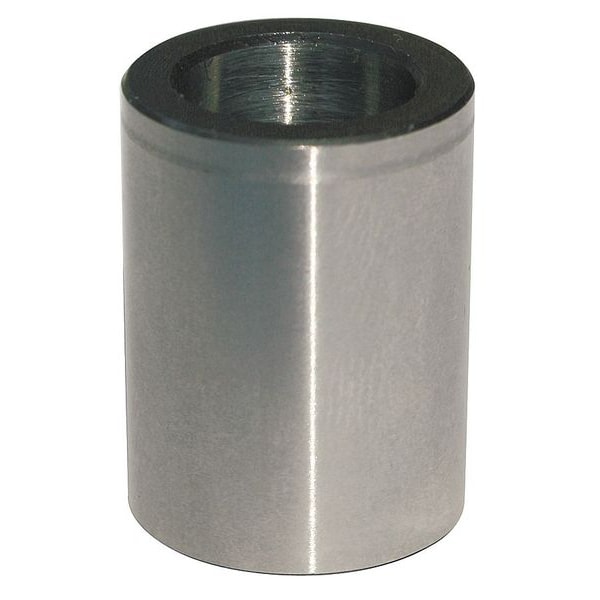

Drill Bushing, Type L, Drill Size 3/16 In
| Bushing Head Type | Headless |
|---|---|
| Hardness | Rc 62-64 |
| Material - Machining | High Speed Steel |
| Outside Dia. Tolerance | +0.0016 in /+0.0013 in |
| Bushing Type | Liner |
| Item | Drill Bushing Liner |
| Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
| Size- Decimal | 3/16 in |
| Finish | High Speed Steel |
| Rockwell Hardness | RC 62-64 |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Material | 52100 Thru Hardened |
| Drill Bushing Wall Type | Standard Wall |
| Inside Dia. | 3/16 in |
| Drill Size | 3/16 in |
| Measurement System | Fractional Inch |
| Head Material | High Speed Steel |
| Outside Dia. | 5/16 in |
| Overall Length | 3/4 in |
| Decimal Equivalent | 0.1875 |
| Heat Treatment | Through Hardened |
| Size - Decimal | 3/16 in to 0.1875 |
| Bushing Code | L |
| Package Quantity | 1 |
