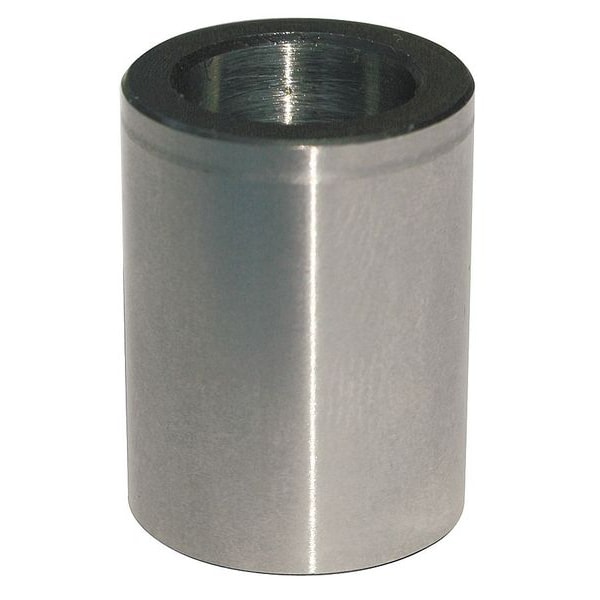

Drill Bushing, Type L, Drill Size 3/4 In
| Size- Decimal | 3/4 in |
|---|---|
| Decimal Equivalent | 0.75 |
| Material - Machining | High Speed Steel |
| Concentricity Tolerance | .0005" T.I.R. max |
| Bushing Type | Liner |
| Drill Size | 3/4 in |
| Rockwell Hardness | RC 62-64 |
| Outside Dia. Tolerance | +0.0018 in /+0.0015 in |
| Bushing Head Type | Headless |
| Outside Dia. | 1 in |
| Hardness | Rc 62-64 |
| Overall Length | 1 in |
| Head Material | High Speed Steel |
| Material | 52100 Thru Hardened |
| Finish | High Speed Steel |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Item | Drill Bushing Liner |
| Inside Dia. | 3/4 in |
| Measurement System | Fractional Inch |
| Drill Bushing Wall Type | Standard Wall |
| Heat Treatment | Through Hardened |
| Size - Decimal | 3/4 in to 0.75 |
| Bushing Code | L |
| Package Quantity | 1 |
