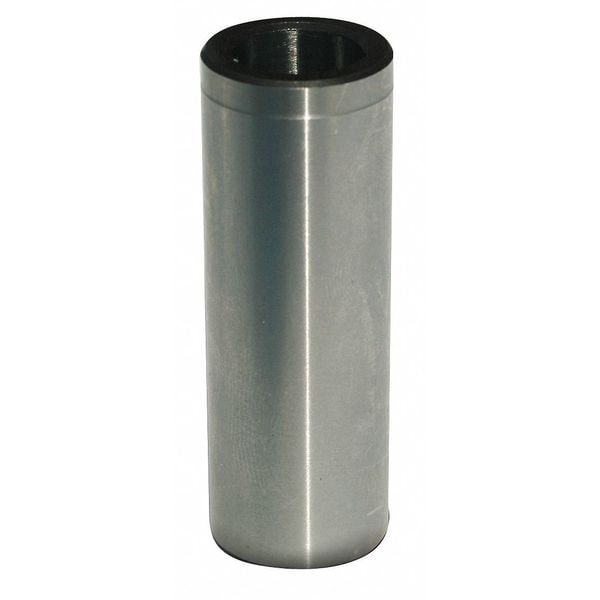

Drill Bushing, Type P, Drill Size 23/64 In
| Hardness | Rc 62-64 |
|---|---|
| Drill Size | 23/64 in |
| Finish | High Speed Steel |
| Bushing Head Type | Headless |
| Bushing Type | Headless Press Fit |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Decimal Equivalent | 0.3594 |
| Outside Dia. | 5/8 in |
| Material | 52100 Thru Hardened |
| Overall Length | 1-1/4 in |
| Measurement System | Fractional Inch |
| Material - Machining | High Speed Steel |
| Heat Treatment | Through Hardened |
| Head Material | High Speed Steel |
| Size- Decimal | 23/64" (0.3594) |
| Inside Dia. | 23/64 in |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Drill Bushing Wall Type | Thin Wall |
| Outside Dia. Tolerance | +0.0014 in /+0.0017 in |
| Rockwell Hardness | RC 62-64 |
| Item | Press-Fit Drill Bushing (P) |
| Head Type | No |
| Bushing Code | P |
| Size - Decimal | #31 - 0.1200 |
| Package Quantity | 1 |
