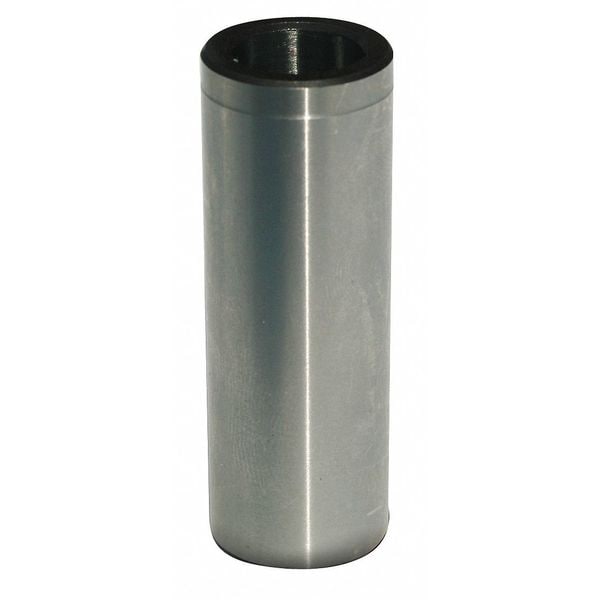

Drill Bushing, Type P, Drill Size # 26
| Inside Dia. | #26 |
|---|---|
| Finish | High Speed Steel |
| Material | 52100 Thru Hardened |
| Overall Length | 5/8 in |
| Decimal Equivalent | 0.147 |
| Rockwell Hardness | RC 62-64 |
| Size- Decimal | #26 (0.1470) |
| Drill Size | #26 |
| Head Material | High Speed Steel |
| Bushing Type | Headless Press Fit |
| Hardness | Rc 62-64 |
| Heat Treatment | Through Hardened |
| Drill Bushing Wall Type | Thin Wall |
| Material - Machining | High Speed Steel |
| Item | Press-Fit Drill Bushing (P) |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Outside Dia. | 5/16 in |
| Outside Dia. Tolerance | +0.0013 in /+0.0016 in |
| Bushing Head Type | Headless |
| Measurement System | Wire |
| Head Type | No |
| Bushing Code | P |
| Size - Decimal | 1-15/32 in to 1.4688 |
| Package Quantity | 1 |
