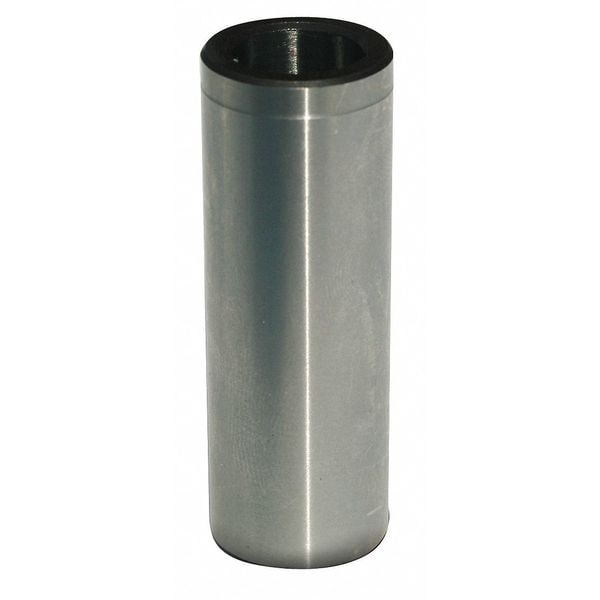

Drill Bushing, Type P, Drill Size # 5
| Bushing Type | Headless Press Fit |
|---|---|
| Hardness | Rc 62-64 |
| Inside Dia. | #5 |
| Size- Decimal | #5 (0.2055) |
| Decimal Equivalent | 0.2055 |
| Outside Dia. Tolerance | +0.0012 in /+0.0015 in |
| Finish | High Speed Steel |
| Rockwell Hardness | RC 62-64 |
| Drill Bushing Wall Type | Standard Wall |
| Material | 52100 Thru Hardened |
| Outside Dia. | 13/32 in |
| Head Material | High Speed Steel |
| Heat Treatment | Through Hardened |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Drill Size | #5 |
| Item | Press-Fit Drill Bushing (P) |
| Bushing Head Type | Headless |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Material - Machining | High Speed Steel |
| Measurement System | Wire |
| Overall Length | 1-3/8 in |
| Head Type | No |
| Bushing Code | P |
| Size - Decimal | #52 - 0.0635 |
| Package Quantity | 1 |
