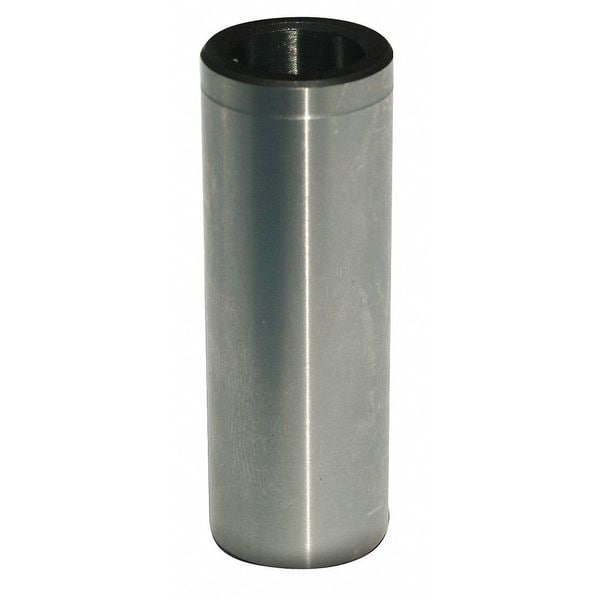

Drill Bushing, Type P, Drill Size 5mm
| Decimal Equivalent | 0.1969 |
|---|---|
| Material - Machining | High Speed Steel |
| Head Material | High Speed Steel |
| Outside Dia. | 13/32 in |
| Rockwell Hardness | RC 62-64 |
| Heat Treatment | Through Hardened |
| Drill Size | 5 mm |
| Outside Dia. Tolerance | +0.0012 in /+0.0015 in |
| Item | Press-Fit Drill Bushing (P) |
| Material | 52100 Thru Hardened |
| Hardness | Rc 62-64 |
| Bushing Head Type | Headless |
| Drill Bushing Wall Type | Standard Wall |
| Overall Length | 1/2 in |
| Finish | High Speed Steel |
| Measurement System | Metric |
| Size- Decimal | 5.00mm (0.1969) |
| Inside Dia. | 5.00 mm |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Bushing Type | Headless Press Fit |
| Head Type | No |
| Bushing Code | PM |
| Size - Decimal | 1/4 in to 0.25 |
| Package Quantity | 1 |
