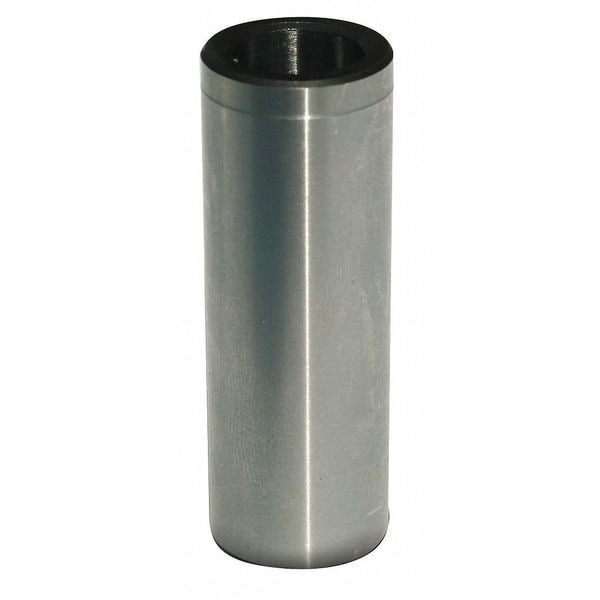

Drill Bushing, Type P, Drill Size 7/32 In
| Size- Decimal | 7/32" (0.2188) |
|---|---|
| Drill Size | 7/32 in |
| Heat Treatment | Through Hardened |
| Rockwell Hardness | RC 62-64 |
| Overall Length | 1-3/8 in |
| Bushing Head Type | Headless |
| Item | Press-Fit Drill Bushing (P) |
| Material - Machining | High Speed Steel |
| Hardness | Rc 62-64 |
| Inside Dia. | 7/32 in |
| Decimal Equivalent | 0.2188 |
| Finish | High Speed Steel |
| Outside Dia. | 1/2 in |
| Head Material | High Speed Steel |
| Drill Bushing Wall Type | Standard Wall |
| Bushing Type | Headless Press Fit |
| Measurement System | Fractional Inch |
| Material | 52100 Thru Hardened |
| Concentricity Tolerance | .0003" T.I.R. Max |
| Outside Dia. Tolerance | +0.0014 in /+0.0017 in |
| Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
| Head Type | No |
| Bushing Code | P |
| Size - Decimal | S - 0.3480 |
| Package Quantity | 1 |
