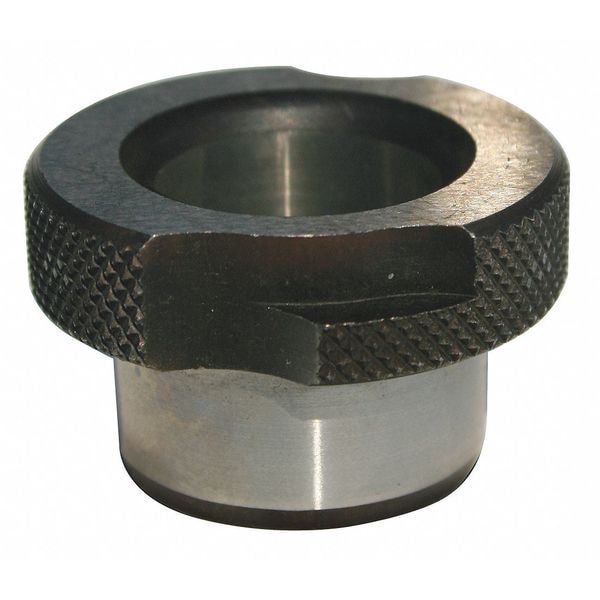

Drill Bushing, Type SF, Drill Size 1-17/32
| Outside Dia. | 2-1/4 in |
|---|---|
| Outside Dia. Tolerance | -0.0004 in /+0.0000 in |
| Head Thickness | 3/8" |
| Bushing Head Type | Headed |
| Material | 52100 Thru Hardened |
| Drill Bushing Wall Type | Standard Wall |
| Head Dia. | 2-51/64 in |
| Hardness | Rc 62-64 |
| Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
| Overall Length | 1-3/4 in |
| Inside Dia. | 1 17/32 in |
| Item | Slip-Fixed/Renewable Drill Bushing (SF) |
| Head Material | High Speed Steel |
| Drill Size | 1 17/32 in |
| Bushing Type | Slip Fixed Renewable Combination |
| Heat Treatment | Through Hardened |
| Concentricity Tolerance | .0005" T.I.R. max |
| Material - Machining | High Speed Steel |
| Rockwell Hardness | RC 62-64 |
| Measurement System | Fractional Inch |
| Finish | High Speed Steel |
| Decimal Equivalent | 1.5312 |
| Head Type | Yes |
| Bushing Code | SF |
| Size - Decimal | #41 - 0.0960 |
| Package Quantity | 1 |
