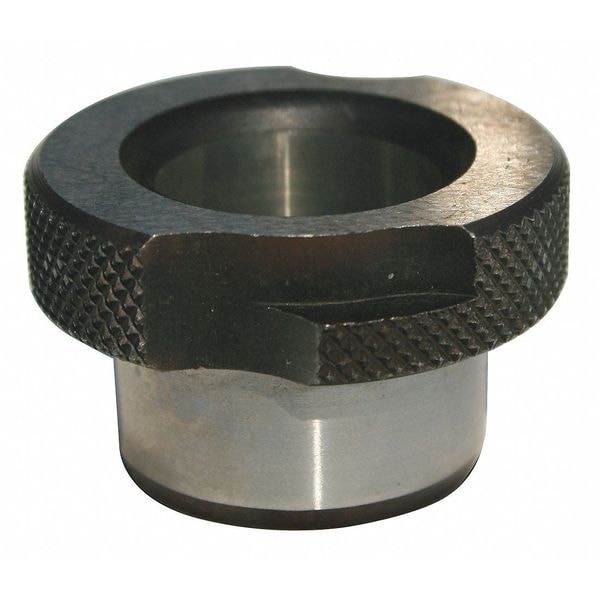

Drill Bushing, Type SF, Drill Size # 45
| Finish | High Speed Steel |
|---|---|
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Concentricity Tolerance | .0005" T.I.R. max |
| Size- Decimal | #45 (0.0820) |
| Head Thickness | 3/16" |
| Outside Dia. | 3/16 in |
| Decimal Equivalent | 0.082 |
| Overall Length | 3/8 in |
| Drill Bushing Wall Type | Thin Wall |
| Rockwell Hardness | RC 62-64 |
| Bushing Head Type | Headed |
| Head Material | High Speed Steel |
| Inside Dia. | #45 |
| Drill Size | #45 |
| Bushing Type | Slip Fixed Renewable Combination |
| Material | 52100 Thru Hardened |
| Head Dia. | 5/16 in |
| Outside Dia. Tolerance | -0.0005 in /-0.0007 in |
| Material - Machining | High Speed Steel |
| Item | Slip-Fixed/Renewable Drill Bushing (SF) |
| Measurement System | Wire |
| Hardness | Rc 62-64 |
| Heat Treatment | Through Hardened |
| Head Type | Yes |
| Bushing Code | SF |
| Size - Decimal | 5.00mm - 0.1969 |
| Flute Type | Spiral |
| Drill Bit Dimension Type | Fractional |
| Point Type | Split |
| Package Quantity | 1 |
