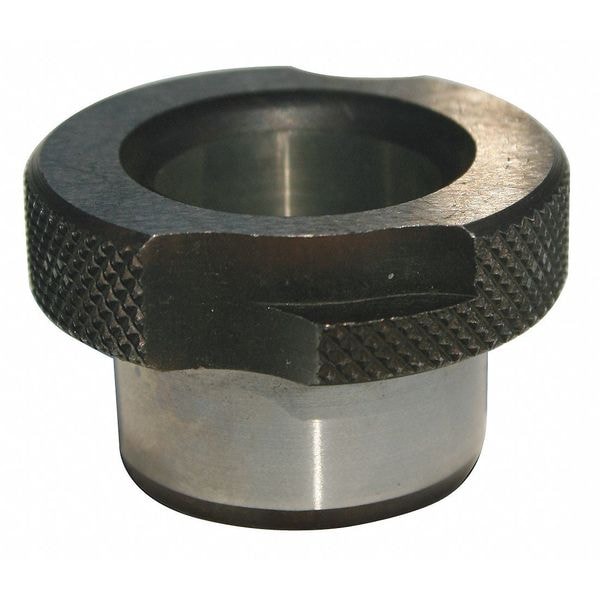

Drill Bushing, Type SF, Drill Size 5/8 In
| Heat Treatment | Through Hardened |
|---|---|
| Hardness | Rc 62-64 |
| Rockwell Hardness | RC 62-64 |
| Inside Dia. | 5/8 in |
| Measurement System | Fractional Inch |
| Drill Bushing Wall Type | Thin Wall |
| Outside Dia. Tolerance | -0.0002 in /+0.0000 in |
| Material | 52100 Thru Hardened |
| Head Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Bushing Head Type | Headed |
| Outside Dia. | 7/8 in |
| Concentricity Tolerance | .0005" T.I.R. max |
| Head Dia. | 1-1/4 in |
| Overall Length | 5/8 in |
| Size- Decimal | 5/8" (0.6250) |
| Finish | High Speed Steel |
| Head Thickness | 3/8" |
| Item | Slip-Fixed/Renewable Drill Bushing (SF) |
| Bushing Type | Slip Fixed Renewable Combination |
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
| Decimal Equivalent | 0.625 |
| Drill Size | 5/8 in |
| Head Type | Yes |
| Bushing Code | SF |
| Size - Decimal | 9/32 in - 0.2812 |
| Package Quantity | 1 |
