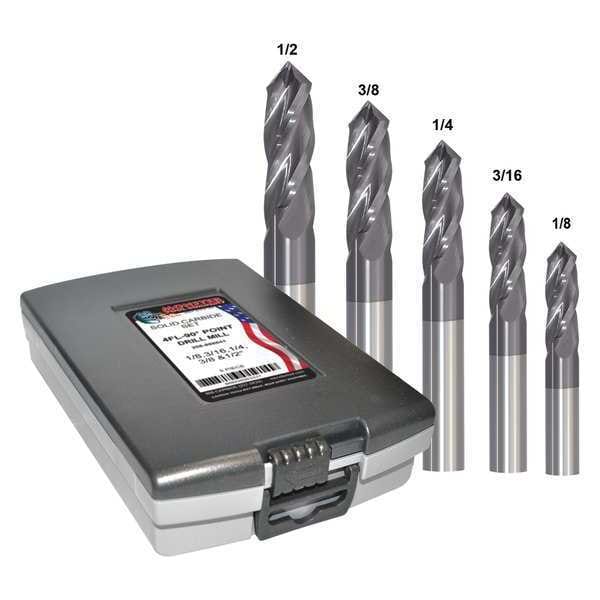

Drill Mill, Carbide, 4 Flutes, TiAlN, 208
| Material - Machining | Carbide |
|---|---|
| Finish - Machining | AlTiN |
| Measurement System | Fractional Inch |
| Number of Flutes | 4 |
| Milling Dia. | 1/8 in, 3/16 in, 1/4 in, 3/8 in, 1/2 in |
| Length of Cut | 0 |
| Included Angle | 90 Degrees |
| Helix Angle | 30 Degrees |
| Single End/Double End | Single End |
| End Mill Application | Finishing, Roughing |
| Grade | General Purpose |
| Cutting Direction | Right Hand |
| Item | Drill Mill Set |
| End Mill Material | Carbide |
| Dimension Type | Fractional Inch |
| Finish | TiAlN |
| Milling Diameter | 1/4", 3/8", 1/2", 3/16", 1/8" |
| List Number | 208 |
| Cutting Type | Center |
| End Mill Cutting Type | Center Cutting |
| Shank Type | Straight |
| End Mill Style | Drill |
| Primary Material Application | All Materials |
| Material Applications | Aluminum, Stainless Steel, Steel, Brass, Bronze, Cast Iron, Copper |
| Drilling Tool Configuration | Set |
| Largest Milling Dia. | 1/2 in |
| Shank Type - Machining | Straight |
| Sizes Included | 1/8 in, 3/16 in, 1/4 in, 3/8 in, 1/2 in |
| Size Range | 1/8 in to 1/2 in |
| Number of Pieces | 5 |
| Neck Dia. | 0.0000" |
| Package Quantity | 1 |
