Electric Heating Cable Kit, 120VAC, 100 ft Length
| Item | Electric Heating Cable Kit |
|---|---|
| Mounting Location | Dry |
| Cable Length | 100 ft |
| Max. Circuit Length | 200 ft |
| Heater Voltage | 120VAC |
| Standards | cULus |
| Features | Automatically Adjust Heat Output |
| Watts per Foot @ 40F | 6 W |

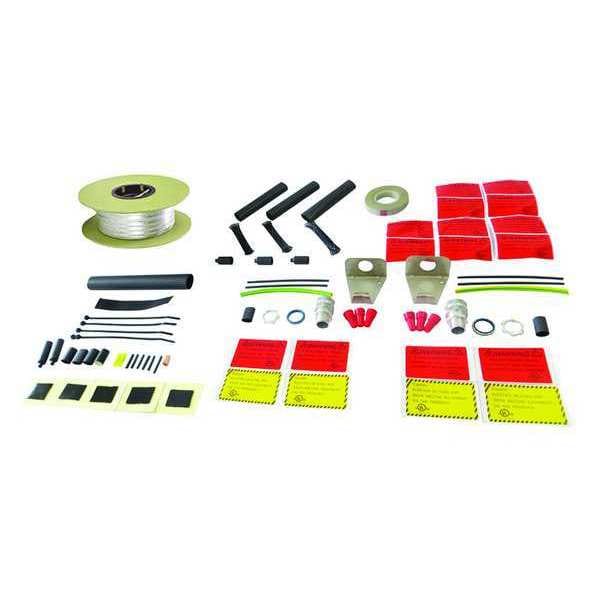

| Includes | (1) 13R090 Splice/Tee Kit, (1) 13R091 Roll of Tape/Labels, (1) Roll of Cable, (2) 13R088 Power Connection Kits |
| Number of Conductors | 2 |
| Watts On Plastic | 500 |
| For Use With | Plastic or Metal Pipes Up to 8 in Dia, Water Pipe System |
| Plug Type | GFCI |
| Amps per Cable @ 40F | 4.2 A |
| Watts per Cable @ 40F | 600 W |
| Amps per Foot @ 40F | 0.04 A |
| Watts On Metal | 500 |
| Length | 100 ft |
| Phase | 1 |
| Voltage | 120 V |
| Cable Type | Self-Regulating |
| Overall Width | 7/16 in |
| Min. Operating Temp. | -40 deg F |
| Frequency | 60 Hz |
| Cable Cover Material | Thermoplastic Elastomer |
| Wattage Output | 5 W |
| For Use Outdoors | Indoor Only |
| NEMA Plug Configuration | Hardwired |
| Color | Silver |
| Max. Operating Temp. | 150 deg F |
| Cable Material | Copper |
| For Use Indoors/Outdoors | Indoor Only |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
