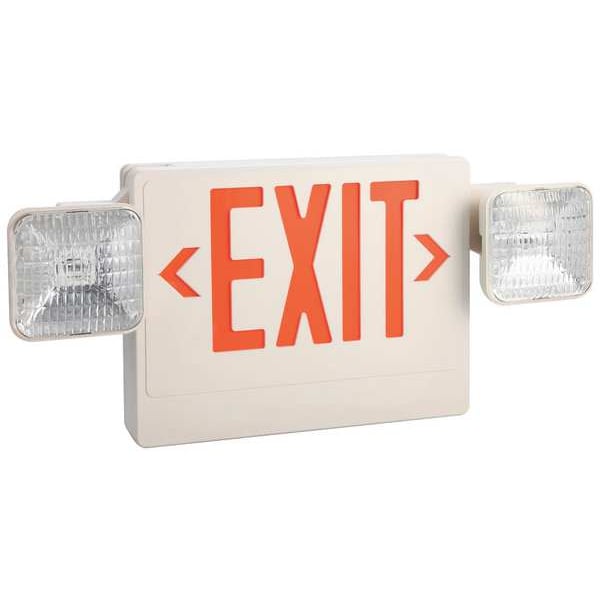

Exit Sign w/ Emergency Lights, 1 or 2 Face(s), Incandescent, Universal Mounting (Formerly LumaPro)
| Item | Exit Sign with Emergency Lights |
|---|---|
| Width | 21-5/8 in |
| Height | 10-1/8 in |
| Voltage | 120/277V AC |
| Housing Material | Plastic |
| Number of Faces | 1 or 2 |
| Mounting | Universal |
| Lighting Technology | Incandescent |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Sealed Lead Acid |
| Letter Color | Red |
| Letter Size | 6 in |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Number of Lamp Heads | 2 |
| Fixture Wattage | 13.1 W |
| Head Lamps Adjustable | Yes |
| Emergency Back Up Battery | Yes |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | Incandescent |
| Warranty | 1 yr |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Item - Emergency Lighting and Exit Signs | Exit Sign with Emergency Lights |
| Standards | NFPA Life Safety Code 101, UL 924 |
| Depth | 4-5/8 in |
| Overall Height | 10-1/4 in |
| Overall Width | 21-3/4 in |
| Includes | Push Button |
| Background Color | White |
| Housing Finish | Matte |
| Text Height | 6 in |
| Recommended Single Fixture Spacing | 14 ft |
| Text Stroke Width | 3/4 in |
| Battery Recharge Time | 24 hr |
| Remote Capable | No |
| Text Color | Red |
| Overall Depth | 4-3/4 in |
| Battery Voltage | 6 V DC |
| Lamp Head Location | Side |
| Environmental Rating | Damp Location Rated |
| Recommended Mounting Height | 10 ft |
| Lamp Head Shape | Square |
| Lamp Wattage | 5.4 W |
| Minimum Operating Temperature | 50 deg F |
| Compliance Type | None |
| Emergency Battery Backup | Yes |
| Text Size | 3/4 in Stroke x 6 in High |
| Maximum Operating Temperature | 104 deg F |
| NEMA Rating | Not Rated |
| Emergency Wattage | 10.8 W |
| Lamp Head Light Source | Incandescent |
| Self Diagnostics | No |
| CA Title 20 Compliant | Yes |
| Number of Bulbs | 2 |
| Manufacturers Warranty Length | 2 yr |
| Current | 0.2 A |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
