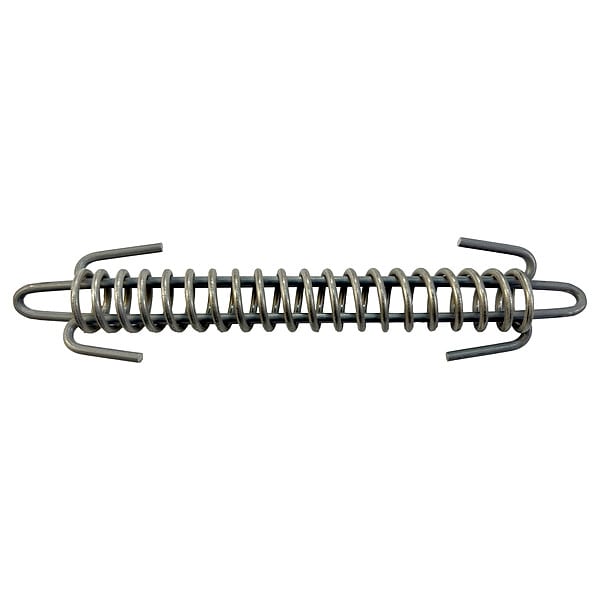

Ext Spring, Safety Drawbar, 7 1/2 OAL
| Type | Safety Drawbar |
|---|---|
| Material | 302 Stainless Steel |
| Overall Length | 7-1/2 in |
| Outside Dia. | 7/8 in |
| Wire Dia. | 0.105 in |
| Spring Rate (Lbs./In.) | 18 lb/in |
| Item | Extension Spring |
| Deflection @ Load | Not Applicable |
| End Type | Closed Drawbar |
| Package Quantity | 1 |
| Load (Lbs.) | 49.5 |
| Finish | Plain |
| Meets/Exceeds | ASTM A313 and AMS 5688 |
| Wire Diameter | 0.11 in |
| Product Type | Extension Spring |
| Outside Diameter | 7/8 in |
| Total Active Coils | 18.5 |
| Standards | AMS 5688, ASTM A313 |
| Hook Configuration | Extended |
| Spring Rate | 18 lb/in |
| Free Length | 2-1/2 in |
| Color | Gray |
| Hook Length | Not Applicable |
| Inside Diameter | Not Applicable |
| Extended Length | 10-31/64 in |
| Elastic Limit | Not Applicable |
| System of Measurement | Inch, Metric |
| Country of Origin (subject to change) | United States |
