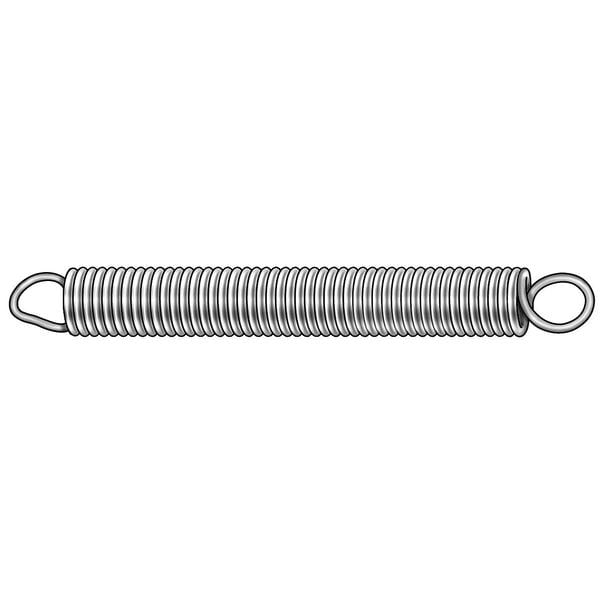

Ext Spring, Ultra Precision, 1 1/4 OAL, PK3
| Type | Ultra Precision |
|---|---|
| Material | 302 Stainless Steel |
| Overall Length | 1-1/4 in |
| Outside Dia. | 0.24 in |
| Wire Dia. | 0.018 in |
| Spring Rate (Lbs./In.) | 0.26 lb/in |
| Package Quantity | 3 |
| Deflection @ Load | Not Applicable |
| Item | Extension Spring |
| Meets/Exceeds | ASTM A313 and AMS 5688 |
| Load (Lbs.) | 1.03 |
| Finish | Plain |
| End Type | Full Twist Loop |
| Initial Tension (Lbs.) | 0.1 |
| Wire Diameter | 0.018 in |
| Elastic Limit | 3.3 in |
| Product Type | Extension Spring |
| Total Active Coils | 46 |
| Inside Diameter | Not Applicable |
| Standards | ASTM A313 |
| Outside Diameter | 0.24 in |
| Color | Gray |
| System of Measurement | Inch |
| Extended Length | 4-21/32 in |
| Hook Configuration | Crossover Center |
| Free Length | 1-1/4 in |
| Spring Rate | 0.26 lb/in |
| Hook Length | 13/64 in |
| Initial Tension | 0.11 lbf |
| Country of Origin (subject to change) | United States |
