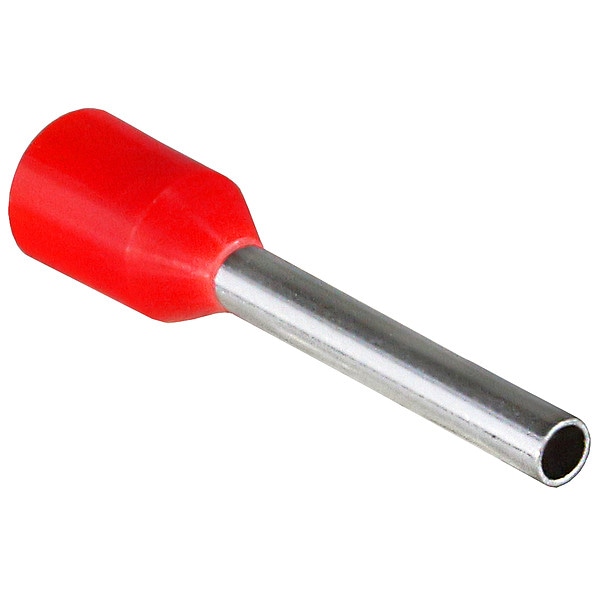

Casquillo, cobre, 0.72 pulgadas de largo, paquete con 100 piezas.
| Item | Ferrule |
|---|---|
| Insulation Color | Red |
| Insertion Length | 15/32 in |
| Overall Length | 0.72 in |
| Maximum Operating Temperature | 221 deg F |
| Standards | cULus Listed |
| Minimum Operating Temperature | Not Applicable |
| Contact Material | Copper |
| Strip Length | 9/16 in |
| Special Features | Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type E |
| Insulation Material | Nylon |
| Ferrule Material | Copper |
| Barrel Length | 0.26 in |
| Maximum Conductors | 1 |
| Ferrule Diameter | 0.07 in |
| Contact Finish | Tin |
| Maximum Wire Size | 18 AWG |
| Barrel Material | Copper |
| Barrel Finish | Tin Plated |
| Barrel Diameter | 0.12 in |
| RoHS Compliant | Yes |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 18 AWG |
| Termination Style | Crimp |
| Package Quantity | 100 |
