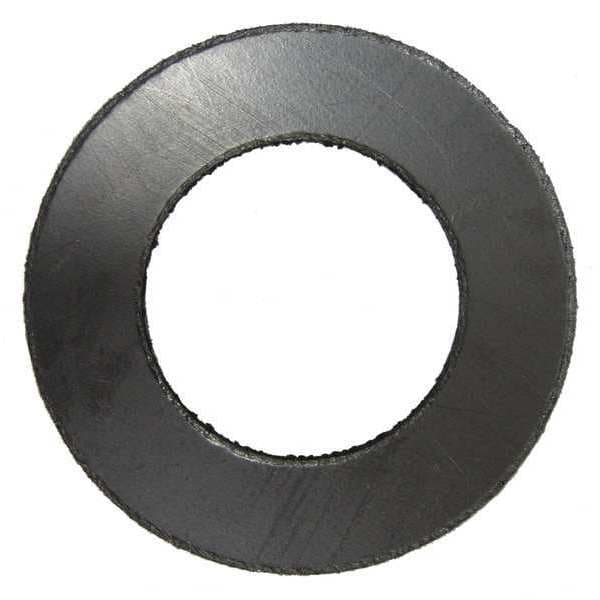

Flange Gasket, 2-1/2 in., 1/8 in., Graphite
| Pipe Size | 2-1/2 in |
|---|---|
| Outside Dia. | 4-7/8 in |
| Inside Dia. | 2-7/8 in |
| Thickness | 1/8 in |
| Material of Construction | Flexible Graphite with 316SS Insert |
| Max. Pressure (PSI) | 2,000 |
| Flange Class | Class 150 |
| Color | Black |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 850 deg F |
| Temp. Range (F) | -400 to 850 |
| FDA Approved | No |
| Binder Material | None |
| For Flange ANSI Class | 150 |
| Reinforced | Yes |
| Metal Detectable Gasket | No |
| Included Fasteners | Not Applicable |
| Insert Material | 316 Stainless Steel |
| For Pipe Size | 2-1/2 in |
| Minimum Operating Temperature | -400 deg F |
| Inside Diameter | 2-7/8 in |
| Maximum Operating Temperature | 850 deg F |
| Hardness | Not Rated |
| Gasket Type | Ring Gasket |
| X-Ray Detectable | No |
| Gasket Material | Graphite |
| System of Measurement | Inch |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
