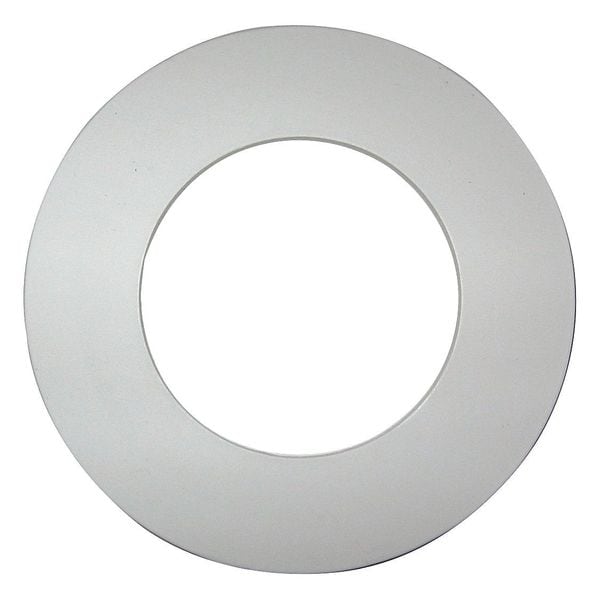

Flange Gasket, 2-1/2 in., 1/8 in., White
| Pipe Size | 2-1/2 in |
|---|---|
| Outside Dia. | 4-7/8 in |
| Inside Dia. | 2-7/8 in |
| Thickness | 1/8 in |
| Material of Construction | PTFE |
| Max. Pressure (PSI) | 2,900 |
| Flange Class | Class 150 |
| Color | White |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -400 Degrees to 599 Degrees |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 518 deg F |
| Standards | AREVA, ASME B16.21, ASME/ANSI Pressure Class-150 LB, BAM, Blow-Out-Test VDI 2200, FDA, Germanischer Lloyd, TA-Luft, USP Plastic Class VI, WRc |
| For Fluid Type | Chemicals |
| Reinforced | No |
| For Piping System | Chemical, Distillers, Food and Beverage, Iron and Steel Manufacturing, Marine, Petrochemical, Pharmaceuticals, Pulp and Paper Manufacturing |
| Binder Material | None |
| Insert Material | None |
| Metal Detectable Gasket | No |
| FDA Approved | Yes |
| Included Fasteners | Not Applicable |
| For Flange ANSI Class | 150 |
| Market | Industrial |
| Features | Gasket can be removed without residue |
| Maximum Operating Temperature | 600 deg F |
| Gasket Material | ePTFE |
| For Pipe Size | 2-1/2 in |
| For Environment | Beverage, Food |
| X-Ray Detectable | No |
| Hardness | Not Rated |
| Gasket Type | Ring Gasket |
| Minimum Operating Temperature | -450 deg F |
| System of Measurement | Inch |
| Inside Diameter | 2-7/8 in |
| Resistance Properties | Chemical-Resistant |
| Country of Origin (subject to change) | Austria |
| Package Quantity | 1 |
