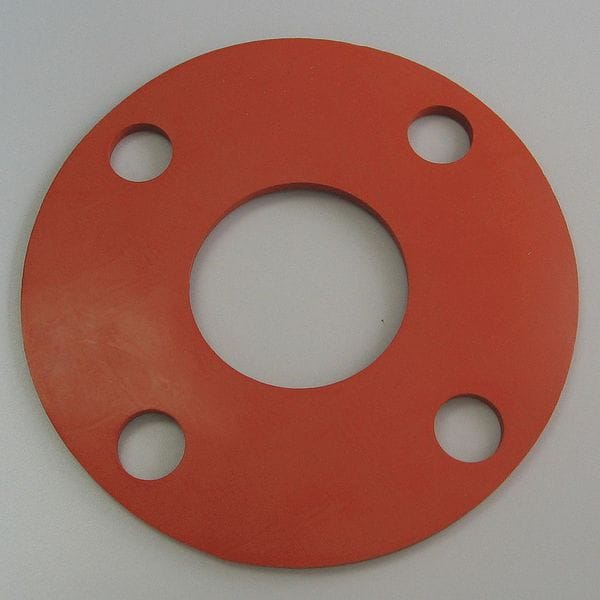

Flange Gasket, Full Face, 1/2 In, Silicone
| Pipe Size | 1/2 in |
|---|---|
| Outside Dia. | 3-1/2 in |
| Inside Dia. | 27/32 in |
| Bolt Holes | 4 |
| Thickness | 1/8 in |
| Material of Construction | Silicone |
| Max. Pressure (PSI) | 250 |
| Flange Class | Class 150 |
| Color | Red |
| Item | Full Face Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Continuous Max. Temp. (F) | 450 deg F |
| Type | Full Face Gasket |
| Temp. Range (F) | -80 to 450 |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| For Flange ANSI Class | 150 |
| Bolt Hole Diameter | 5/8 in |
| Metal Detectable Gasket | No |
| Included Fasteners | Not Applicable |
| Binder Material | Silicone |
| FDA Approved | No |
| Insert Material | None |
| Number of Bolt Holes | 4 |
| X-Ray Detectable | No |
| Maximum Operating Pressure | 250 psi |
| Resistance Properties | Heat-Resistant |
| Gasket Type | Full-Face Gasket |
| Minimum Operating Temperature | -80 deg F |
| Bolt Circle Diameter | 2-3/8 in |
| Inside Diameter | 13/16 in |
| System of Measurement | Inch |
| Gasket Material | Silicone |
| Hardness | Shore 60A |
| For Pipe Size | 1/2 in |
| Maximum Operating Temperature | 450 deg F |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
