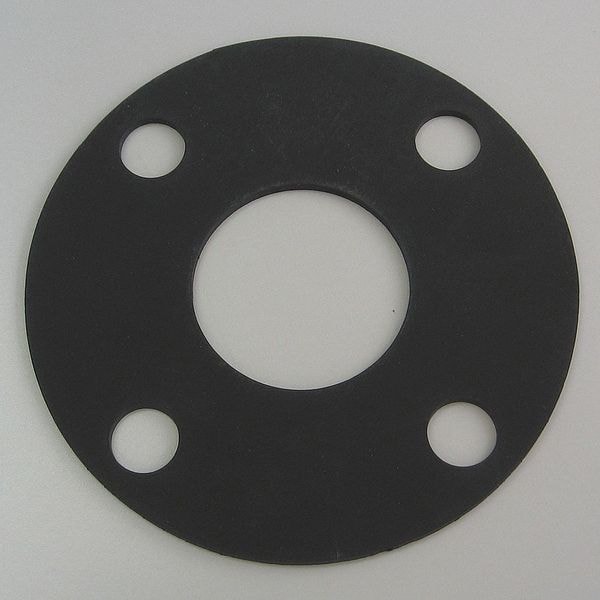

Flange Gasket, Full Face, 2 1/2 In, Viton
| Pipe Size | 2-1/2 in |
|---|---|
| Outside Dia. | 7 in |
| Inside Dia. | 2-7/8 in |
| Bolt Holes | 4 |
| Thickness | 1/8 in |
| Material of Construction | FKM Fluoroelastomer |
| Max. Pressure (PSI) | 250 |
| Flange Class | Class 150 |
| Color | Black |
| Item | Full Face Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -10 to 400 |
| Type | Full Face Gasket |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| Continuous Max. Temp. (F) | 400 deg F |
| Metal Detectable Gasket | No |
| Insert Material | None |
| FDA Approved | No |
| Binder Material | FKM |
| Included Fasteners | Not Applicable |
| Bolt Hole Diameter | 3/4 in |
| Number of Bolt Holes | 4 |
| For Flange ANSI Class | 150 |
| Bolt Circle Diameter | 5-1/2 in |
| X-Ray Detectable | No |
| For Pipe Size | 2-1/2 in |
| System of Measurement | Inch |
| Inside Diameter | 2-7/8 in |
| Minimum Operating Temperature | -10 deg F |
| Gasket Type | Full-Face Gasket |
| Gasket Material | FKM |
| Hardness | Shore 75A |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 400 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
