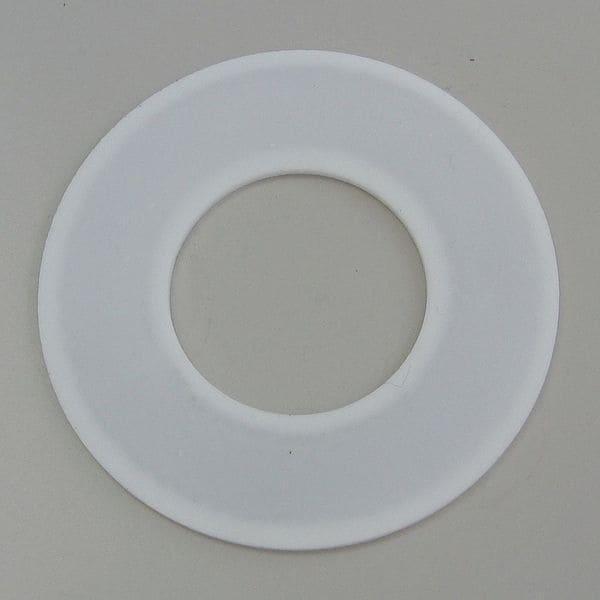

Flange Gasket, Ring, 2 1/2 In, PTFE
| Pipe Size | 2-1/2 in |
|---|---|
| Outside Dia. | 4-7/8 in |
| Inside Dia. | 2-7/8 in |
| Thickness | 3/32 in |
| Material of Construction | PTFE with 304SS Insert |
| Max. Pressure (PSI) | 500 |
| Flange Class | Class 150 |
| Color | White |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| Temp. Range (F) | -250 to 500 |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 500 deg F |
| Insert Material | 304 Stainless Steel |
| Metal Detectable Gasket | No |
| Binder Material | None |
| FDA Approved | No |
| Reinforced | Yes |
| For Fluid Type | Acids, Bleach Solutions, Caustics, Chlorides, Peroxides, Phenols, Solvents, Sulfates |
| Included Fasteners | Not Applicable |
| For Flange ANSI Class | 150 |
| X-Ray Detectable | No |
| Maximum Operating Temperature | 500 deg F |
| Inside Diameter | 2-7/8 in |
| Gasket Material | PTFE |
| For Pipe Size | 2-1/2 in |
| System of Measurement | Inch |
| Minimum Operating Temperature | -250 deg F |
| Hardness | Not Rated |
| Maximum Operating Pressure | 500 psi |
| Gasket Type | Ring Gasket |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
