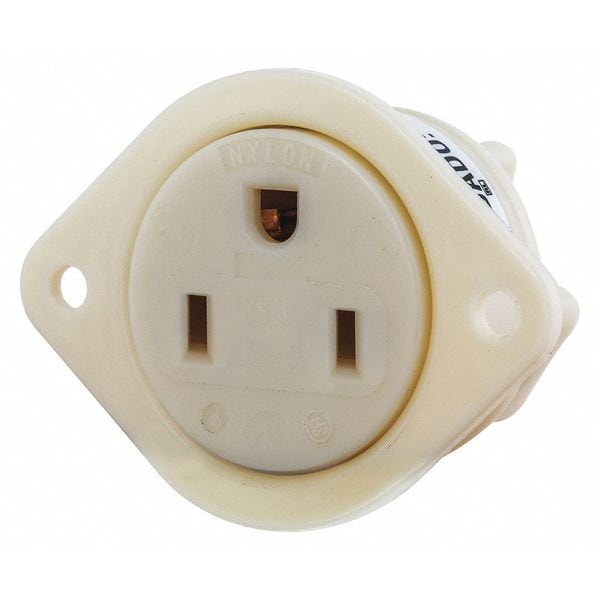

Flanged Receptacle, 15 A Amps, 125V AC, Panel Mount, Single Outlet, 5-20R, White
| Item | Flanged Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Outlet Type | Single |
| Special Features | Corrosion resistant |
| Amps | 15 |
| Standards | CSA Certified, UL Listed |
| Color | White |
| Voltage | 125VAC |
| Material | Nylon |
| Corrosion Resistant | Yes |
| Amps - Plugs and Receptacles | 15 |
| Sub-Category | Single Receptacles |
| Number of Gangs | 1 |
| Phase | Single |
| HP | 1/2 hp |
| Mounting Type | Panel |
| Weather Resistant | No |
| Wiring Method | Back, Side |
| Height | 1.31 in |
| Width | 2-1/2 in |
| Minimum Wire Size | 14 AWG |
| Cover Type | No Cover |
| Resistance Properties | Corrosion Resistant |
| Overall Depth | 1.3 in |
| Housing Color | White |
| Includes | Mounting Hardware |
| Flange Type | Flanged |
| Mount Hole Center-to-Center Height | 2 in |
| Current Rating | 15 A |
| Surge Protection | No |
| Polarized | Yes |
| Face Diameter | 1-1/2 in |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Grade | General Use |
| AFCI | No |
| Horsepower Rating | 0.5 HP |
| GFCI | No |
| Receptacle Type | Single |
| For Location | Indoor |
| Market | Commercial, Industrial |
| Voltage Rating | 125V AC |
| Includes Mounting Hardware | Yes |
| NEMA Receptacle Configuration | 5-15R |
| Maximum Wire Size | 12 AWG |
| Housing Material | Nylon |
| Mount Type | Flush |
| Connection Orientation | Straight |
| Item Type | Single |
| Nema Rating | 5-15R |
| Wire Size | #14 AWG to #12 AWG |
| Application | Commercial/Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Amperage Rating | 15 A |
| Material - Mounting Hardware | Screw Mounting |
| Display Size | Standard Sized Product |
| Series | Heavy Duty |
| Style | Clamp Type |
| Current / Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Wattage | 2500 |
| Type | Flanged Receptacle |
| Length | 1.84 in |
| Package Quantity | 1 |
