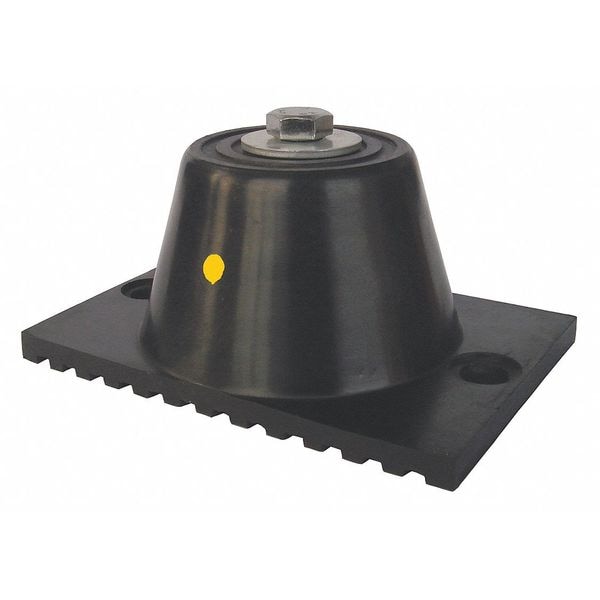

Floor Vibration Isolator, 125 to 250 lb.
| Item | Floor-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 125 to 250 lb |
| Deflection | 1/4 to 1/2 in |
| Height | 1-29/32 in |
| Width | 2-21/64 in |
| Color Mark | Red |
| Spring Color | Not Applicable |
| Dimension D | 1-21/32 in |
| Dimension L | 3-53/64 in |
| Dimension H | 1-29/32 in |
| Cap Screw Dia. and Length | 10 mm x 30 mm |
| Dimension T | 13/32 in |
| Dimension BC | 3 in |
| Dimension F | Not Applicable |
| Dimension R | Not Applicable |
| Dimension J | Not Applicable |
| Includes | Not Applicable |
| Dimension C | Not Applicable |
| Dimension E | Not Applicable |
| Dimension B | Not Applicable |
| Dimension C2 | Not Applicable |
| Dimension A | Not Applicable |
| Dimension I | Not Applicable |
| Dimension BD | Not Applicable |
| Dimension C1 | Not Applicable |
| Dimension G | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Rated Capacity - Maximum | 250 lb |
| Rated Deflection - Minimum | 1/4 in |
| Load Sideways Shear - Maximum | 125 lbf |
| Isolator Material | Neoprene |
| Center-to-Center Mounting Hole Distance | 3 in |
| Rated Capacity - Minimum | 125 lb |
| Isolator Diameter | Not Applicable |
| Load Downward Compression - Maximum | 250 lbf |
| Screw Size | M10 |
| Overall Height | 1-29/32 in |
| Overall Width | 2-21/64 in |
| Includes Spring | Not Applicable |
| Rated Deflection - Maximum | 1/2 in |
| Operating Temperature - Maximum | 158 deg F |
| Overall Depth | 1-29/32 in |
| Durometer | 60 A |
| Thread Size | M10x1.5 |
| Package Quantity | 1 |
