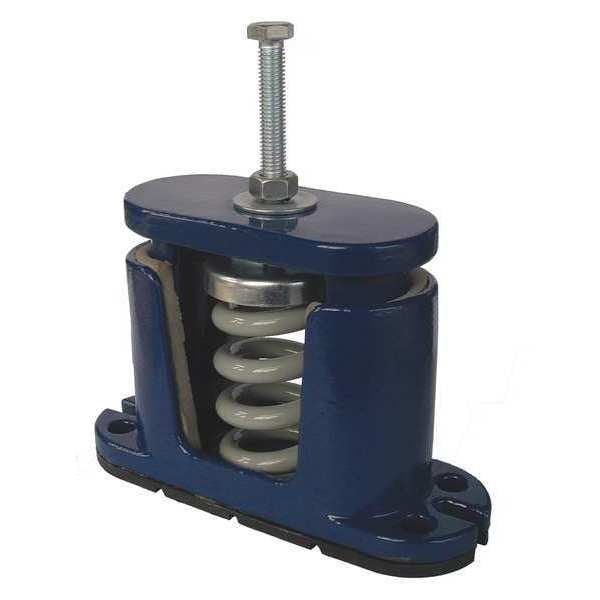

Floor Vibration Isolator, 300 to 400 lb.
| Item | Floor-Mount Vibration Isolator |
|---|---|
| Isolator Type | Spring |
| Capacity Range | 300 to 400 lb |
| Deflection | 3/4 to 1 in |
| Height | 4-1/2 in |
| Width | 2-5/32 in |
| Color Mark | Not Applicable |
| Spring Color | Green |
| Dimension T | 1/2 in |
| Dimension HCW | 1 in |
| Dimension SBC | 5 in |
| Dimension HCL | 4-3/4 in |
| Dimension H | 4-1/2 in |
| Dimension SW | 5/16 in |
| Dimension L | 5-3/4 in |
| Dimension MBD | 1/4 in |
| Dimension A | 4 in |
| Bolt Size | M10 x 100mm |
| Dimension BC | Not Applicable |
| Includes | Not Applicable |
| Dimension E | Not Applicable |
| Dimension G | Not Applicable |
| Dimension B | Not Applicable |
| Dimension I | Not Applicable |
| Dimension BD | Not Applicable |
| Dimension J | Not Applicable |
| Dimension R | Not Applicable |
| Dimension C | Not Applicable |
| Dimension F | Not Applicable |
| Dimension D | Not Applicable |
| Dimension C2 | Not Applicable |
| Dimension C1 | Not Applicable |
| Isolator Diameter | 1 3/4 in |
| Overall Depth | 4-1/2 in |
| Thread Size | M10x1.5 |
| Includes Spring | Spring Included |
| Operating Temperature - Maximum | 176 deg F |
| Overall Height | 4-1/2 in |
| Center-to-Center Mounting Hole Distance | 5 in |
| Rated Deflection - Minimum | 3/4 in |
| Rated Capacity - Maximum | 400 lb |
| Load Downward Compression - Maximum | 400 lbf |
| Overall Width | 2-5/32 in |
| Screw Size | M10 |
| Load Sideways Shear - Maximum | Not Applicable |
| Rated Deflection - Maximum | 1 in |
| Durometer | Not Applicable |
| Operating Temperature - Minimum | -4 deg F |
| Rated Capacity - Minimum | 300 lb |
| Isolator Material | Spring |
| Package Quantity | 1 |
