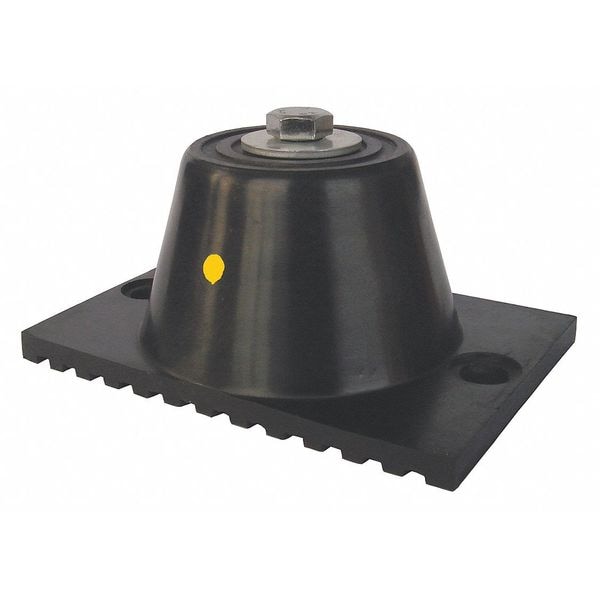

Floor Vibration Isolator, 550 to 1100 lb.
| Item | Floor-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 550 to 1,100 lb |
| Deflection | 1/4 to 1/2 in |
| Height | 2-3/4 in |
| Width | 3-19/64 in |
| Color Mark | Yellow |
| Spring Color | Not Applicable |
| Dimension T | 13/32 in |
| Dimension BC | 4-1/8 in |
| Cap Screw Dia. and Length | 12 mm x 30 mm |
| Dimension L | 5-1/2 in |
| Dimension D | 2-35/64 in |
| Dimension H | 2-3/4 in |
| Dimension I | Not Applicable |
| Dimension BD | Not Applicable |
| Dimension A | Not Applicable |
| Dimension J | Not Applicable |
| Dimension F | Not Applicable |
| Dimension C1 | Not Applicable |
| Dimension R | Not Applicable |
| Includes | Not Applicable |
| Dimension C2 | Not Applicable |
| Dimension B | Not Applicable |
| Dimension C | Not Applicable |
| Dimension E | Not Applicable |
| Dimension G | Not Applicable |
| Rated Deflection - Maximum | 1/2 in |
| Includes Spring | Not Applicable |
| Isolator Material | Neoprene |
| Operating Temperature - Minimum | 14 deg F |
| Rated Capacity - Maximum | 1,100 lb |
| Screw Size | M12 |
| Thread Size | M12x1.75 |
| Center-to-Center Mounting Hole Distance | 4-1/8 in |
| Overall Height | 2-3/4 in |
| Operating Temperature - Maximum | 158 deg F |
| Rated Deflection - Minimum | 1/4 in |
| Rated Capacity - Minimum | 550 lb |
| Overall Depth | 2-3/4 in |
| Durometer | 80 A |
| Load Sideways Shear - Maximum | 550 lbf |
| Load Downward Compression - Maximum | 1,100 lbf |
| Overall Width | 3-19/64 in |
| Isolator Diameter | Not Applicable |
| Package Quantity | 1 |
