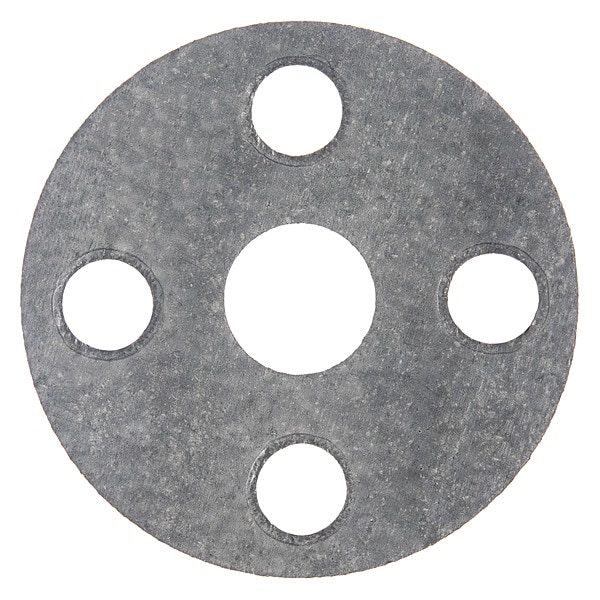

Full Face Graphite Flange Gasket for 1-1/2" Pipe, 1/8" Thick, No 150
| Pipe Size | 1-1/2 in |
|---|---|
| Outside Dia. | 5 in |
| Inside Dia. | 1-7/8 in |
| Bolt Holes | 4 |
| Thickness | 1/8 in |
| Material of Construction | Graphite |
| Flange Class | Class 150 |
| Color | Gray |
| Item | Full Face Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Standards | ASME B16.21 |
| Type | Full Face |
| Hardness | Not Rated |
| Temp. Range (F) | -400 Degrees to 975 Degrees |
| For Fluid Type | Chemicals |
| Number of Bolt Holes | 4 |
| Metal Detectable Gasket | No |
| FDA Approved | No |
| Insert Material | None |
| Bolt Hole Diameter | 5/8 in |
| Included Fasteners | Not Applicable |
| For Flange ANSI Class | 150 |
| Binder Material | None |
| Minimum Operating Temperature | -400 deg F |
| Gasket Type | Full-Face Gasket |
| X-Ray Detectable | No |
| Bolt Circle Diameter | 3-7/8 in |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 975 deg F |
| Gasket Material | Graphite |
| Inside Diameter | 1-15/16 in |
| For Pipe Size | 1-1/2 in |
| System of Measurement | Inch |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
