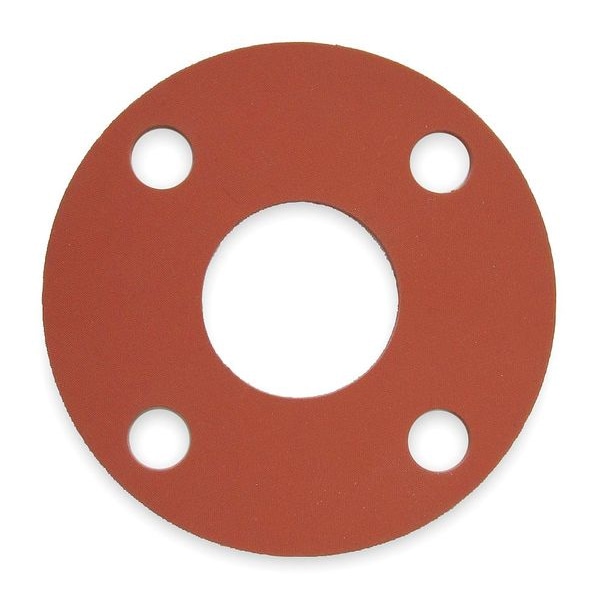

Gasket, Full Face, 1 In, SBR, Red
| Item | Full Face Flange Gasket |
|---|---|
| Pipe Size | 1 in |
| Outside Dia. | 4-1/4 in |
| Bolt Holes | 4 |
| Inside Dia. | 1-5/16 in |
| Metal Detectable | No |
| Material of Construction | SBR Blend |
| Thickness | 1/8 in |
| Temp. Range (F) | -20 to 180 |
| Continuous Max. Temp. (F) | 180 deg F |
| Max. Pressure (PSI) | 150 |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| Type | Full Face Gasket |
| Color | Red |
| Flange Class | Class 150 |
| Number of Bolt Holes | 4 |
| Binder Material | SBR |
| Metal Detectable Gasket | No |
| Bolt Hole Diameter | 5/8 in |
| For Fluid Type | Water, Air |
| For Flange ANSI Class | 150 |
| FDA Approved | No |
| Insert Material | None |
| Included Fasteners | Not Applicable |
| System of Measurement | Inch |
| X-Ray Detectable | No |
| Hardness | Shore 75A |
| Maximum Operating Temperature | 200 deg F |
| Maximum Operating Pressure | 150 psi |
| Minimum Operating Temperature | -20 deg F |
| Gasket Material | SBR |
| For Pipe Size | 1 in |
| Inside Diameter | 1-5/16 in |
| Gasket Type | Full-Face Gasket |
| Bolt Circle Diameter | 3-1/8 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
