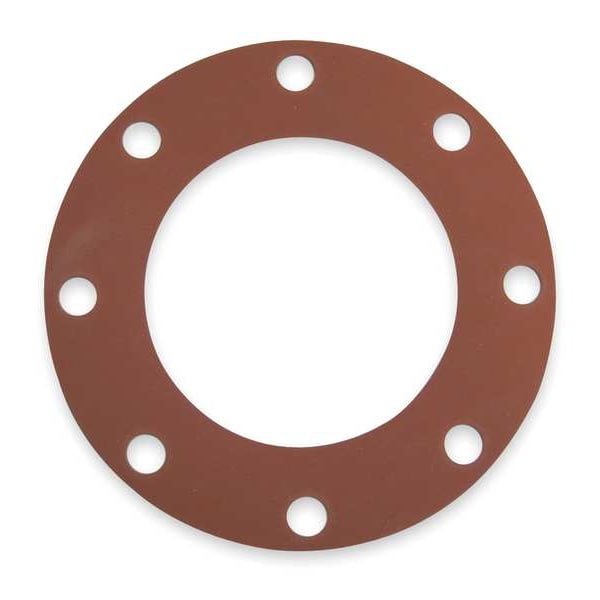

Gasket, Full Face, 8 In, 1/8 In Thick, SBR
| Item | Full Face Flange Gasket |
|---|---|
| Pipe Size | 8 in |
| Outside Dia. | 13-1/2 in |
| Bolt Holes | 8 |
| Inside Dia. | 8-5/8 in |
| Metal Detectable | Yes |
| Material of Construction | SBR Blend |
| Thickness | 1/8 in |
| Temp. Range (F) | -20 to 180 |
| Standards | ANSI Certified |
| Color | Red |
| Type | Full Face |
| Max. Pressure (PSI) | 150 |
| Includes | 8 Bolts |
| Flange Class | Class 150 |
| Bolt Hole Diameter | 7/8 in |
| Binder Material | None |
| Metal Detectable Gasket | No |
| For Fluid Type | Air, Water, Neutral Fluids |
| FDA Approved | No |
| Number of Bolt Holes | 8 |
| Insert Material | None |
| Included Fasteners | Grade A Zinc Plated Carbon Steel Bolts |
| For Flange ANSI Class | 150 |
| Inside Diameter | 8-5/8 in |
| System of Measurement | Inch |
| Gasket Material | SBR |
| Hardness | Not Rated |
| Gasket Type | Full-Face Gasket |
| Maximum Operating Temperature | 180 deg F |
| For Pipe Size | 8 in |
| Maximum Operating Pressure | 150 psi |
| Minimum Operating Temperature | -20 deg F |
| X-Ray Detectable | No |
| Bolt Circle Diameter | 11-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
