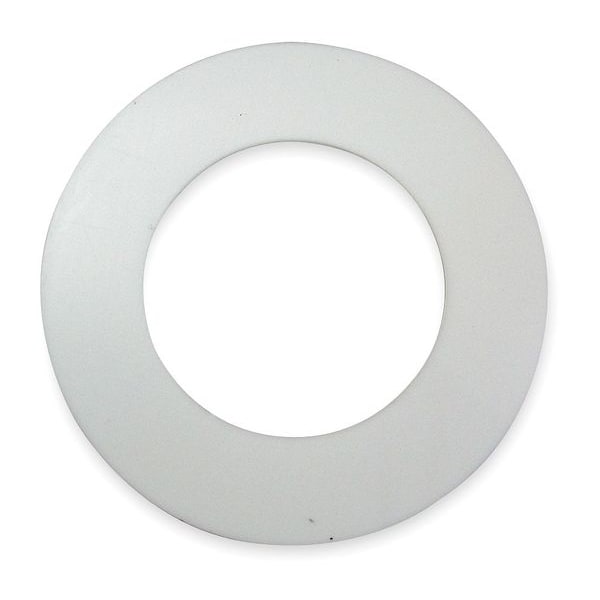

Gasket, Ring, 3/4 In, Virgin PTFE, White, Thickness: 1/8"
| Pipe Size | 3/4 in |
|---|---|
| Outside Dia. | 2-1/4 in |
| Inside Dia. | 1-1/16 in |
| Thickness | 1/8 in |
| Material of Construction | Virgin PTFE |
| Max. Pressure (PSI) | 800 |
| Flange Class | Class 150 |
| Color | White |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -450 to 500 |
| Standards | ASME B16.21, ASME/ANSI Pressure Class-150 LB |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 500 deg F |
| Reinforced | No |
| Included Fasteners | Not Applicable |
| FDA Approved | No |
| Binder Material | None |
| Insert Material | None |
| Metal Detectable Gasket | No |
| For Fluid Type | Acids, Caustics, Chlorine, Cryogenics, Hydrocarbons |
| For Flange ANSI Class | 150 |
| Maximum Operating Temperature | 500 deg F |
| Hardness | Not Rated |
| For Pipe Size | 3/4 in |
| Gasket Type | Ring Gasket |
| System of Measurement | Inch |
| X-Ray Detectable | No |
| Maximum Operating Pressure | 800 psi |
| Minimum Operating Temperature | -450 deg F |
| Gasket Material | PTFE |
| Inside Diameter | 1-1/16 in |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
