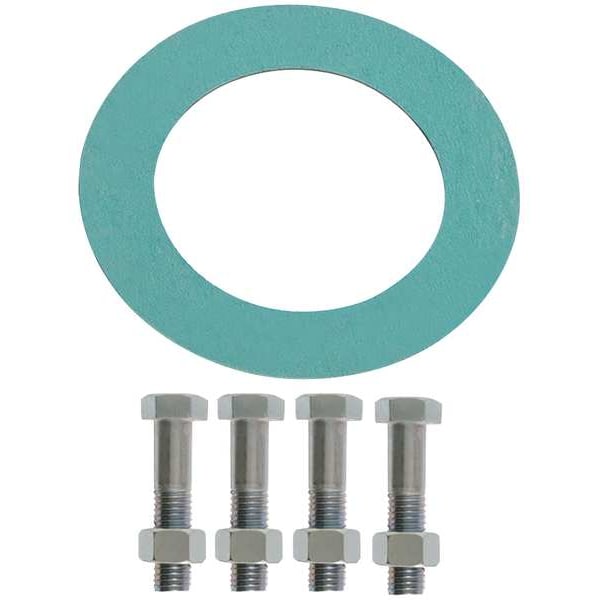

Gasket, Ring, 6 In, 1/16 In Thick, Aramid
| Pipe Size | 6 in |
|---|---|
| Outside Dia. | 8-3/4 in |
| Inside Dia. | 6-1/2 in |
| Thickness | 1/16 in |
| Material of Construction | Aramid Fiber with Nitrile Binder |
| Max. Pressure (PSI) | 150 |
| Flange Class | Class 150 |
| Color | Blue |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | Yes |
| Continuous Max. Temp. (F) | 550 deg F |
| Standards | ASTM F152 |
| Includes | 8 Bolts |
| Type | Ring |
| Temp. Range (F) | -100 to 700 Degrees |
| For Flange ANSI Class | 150 |
| Metal Detectable Gasket | No |
| Reinforced | No |
| FDA Approved | No |
| Market | Industrial |
| For Fluid Type | Air, Fluids, Gases, Steam, Water |
| Included Fasteners | Grade A Zinc Plated Carbon Steel Bolt |
| Insert Material | None |
| Binder Material | Buna-N |
| For Pipe Size | 6 in |
| Gasket Material | Aramid |
| X-Ray Detectable | No |
| Maximum Operating Temperature | 750 deg F |
| Inside Diameter | 6-1/2 in |
| Gasket Type | Ring Gasket |
| Hardness | Not Rated |
| Minimum Operating Temperature | -100 deg F |
| System of Measurement | Inch |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
