Grommet, Buna-N, MS 35489-51, PK25
| Item | Grommet |
|---|---|
| Rubber Material | Buna-N |
| Inside Dia. (A) | 7/8 in |
| Outside Dia. (B) | 1-5/8 in |
| Overall Thickness (C) | 1/2 in |
| Panel Thickness (D) | 1/8 in |
| Panel Hole Dia. (E) | 1-1/4 in |
| Max. Temp. (F) | 225 |
| Min. Temp. (F) | -35 deg F |
| Rubber Color | Black |
| Application | Oil Resistant |
| Package Quantity | 25 |
| Elongation | 300% |
| Tensile Strength (PSI) | 870 |
| Standards | ASTM D2000 2BG506 |

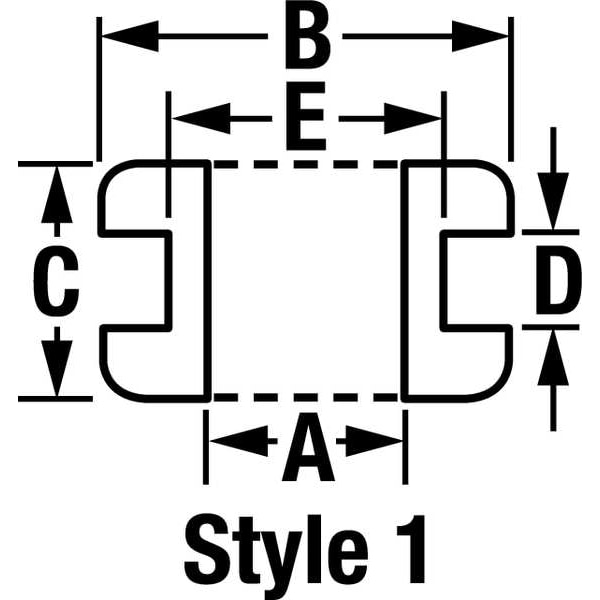

| Rubber Grommet Style | Style 1 |
| MS 35489 Number | 51 |
| Durometer | 50A |
| Rubber Grommet Material | Buna-N |
| Rubber Grommet Color | Black |
| AN 931 Number | A14-20 |
| Outside Diameter | 1.63 in |
| Material | Rubber |
| Inside Diameter | 0.88 in |
| Groove Diameter | 1-1/4 in |
| Hardness | 50A |
| Shape | Round |
| Finish | Unfinished |
| Groove Width | 0.13 in |
| Resistance Properties | Temperature Resistant, Tear Resistant |
| Operating Temperature - Minimum | -35 deg F |
| Product Type | Grommet |
| For Use With | Holes |
| Overall Diameter | Not Applicable |
| Operating Temperature - Maximum | 225 deg F |
| Tensile Strength | 870 psi |
| Color | Black |
| Overall Thickness | 1/2 in |
| Dash Number | A14-20 |
| Product Count | 25 |
| Grommet Style | Style 1 |
| Country of Origin (subject to change) | China |
