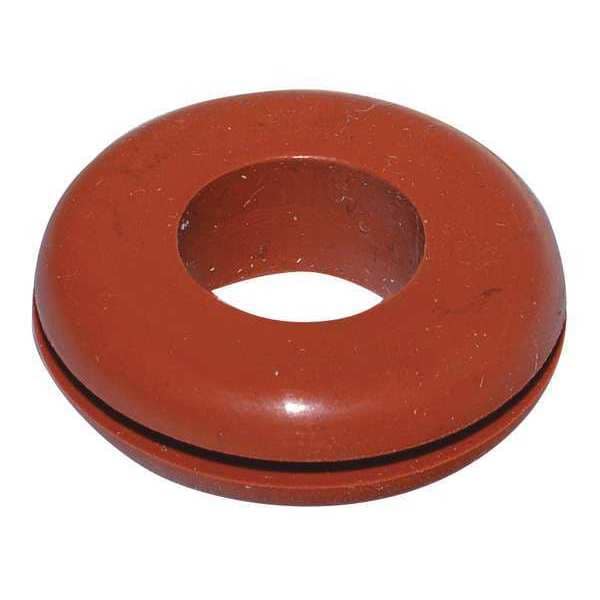

Grommet, Silicone, MS 35489-33X, PK25
| Item | Grommet |
|---|---|
| Rubber Material | Silicone |
| Inside Dia. (A) | 3/16 in |
| Outside Dia. (B) | 7/16 in |
| Overall Thickness (C) | 1/4 in |
| Panel Thickness (D) | 1/8 in |
| Panel Hole Dia. (E) | 5/16 in |
| Max. Temp. (F) | 400 |
| Min. Temp. (F) | -40 deg F |
| Rubber Color | Red |
| Application | Heat Resistant, Water Resistant, Weather Resistant |
| Package Quantity | 25 |
| Elongation | 105% |
| Tensile Strength (PSI) | 1,200 |
| Standards | ASTM D2000 FC512 |

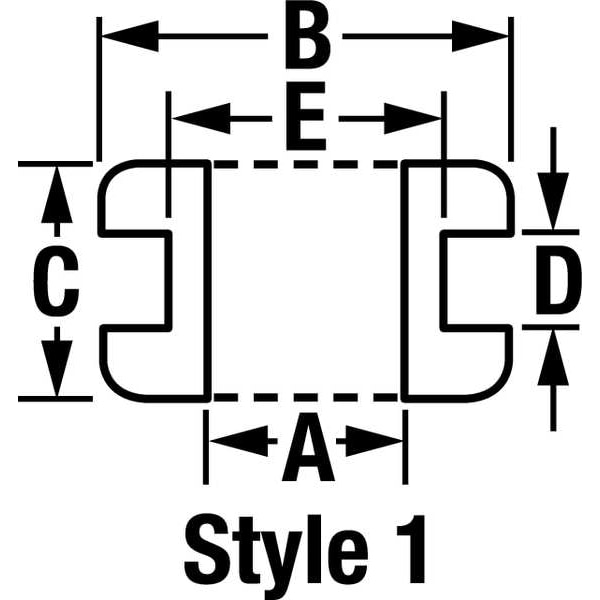

| Rubber Grommet Style | Style 1 |
| MS 35489 Number | 33 |
| Durometer | 50A |
| Rubber Grommet Color | Red |
| Rubber Grommet Material | Silicone |
| AN 931 Number | A3-5 |
| Shape | Round |
| Operating Temperature - Minimum | -40 deg F |
| Inside Diameter | 0.19 in |
| Operating Temperature - Maximum | 400 deg F |
| Product Type | Grommet |
| Grommet Style | Style 1 |
| Groove Width | 0.13 in |
| Overall Diameter | Not Applicable |
| Color | Red |
| Hardness | 50A |
| Finish | Unfinished |
| Groove Diameter | 0.31 in |
| For Use With | Holes |
| Material | Rubber |
| Overall Thickness | 1/4 in |
| Tensile Strength | 1,200 psi |
| Product Count | 25 |
| Resistance Properties | Temperature Resistant, Tear Resistant |
| Outside Diameter | 0.44 in |
| Dash Number | A3-5 |
| Country of Origin (subject to change) | China |
