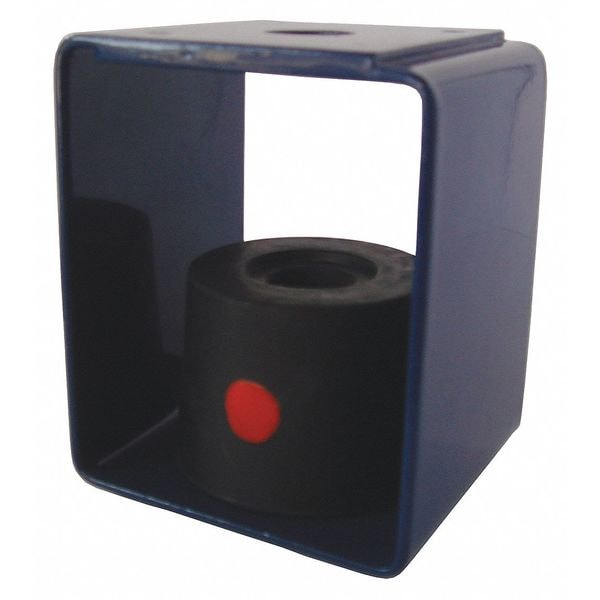

Hanger Vibration Isolator, 20 to 45 lb.
| Item | Hanger-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 20 to 45 lb |
| Deflection Range | 0.18 to 0.35 in |
| Max. Rod Dia. | 1/2 in |
| Lower Rod Penetration | 1-3/4 in |
| Color Mark | Black |
| Height | 2-3/4 in |
| Width | 2-1/4 in |
| Spring Color | Not Applicable |
| Bushing Material | Rubber |
| Load Sideways Shear - Maximum | Not Applicable |
| Overall Depth | 2-3/4 in |
| Durometer | 45 A |
| Rated Deflection - Maximum | 0.35 in |
| Rated Capacity - Minimum | 20 lb |
| Overall Width | 2-1/4 in |
| Rod Diameter - Maximum | 1/2 in |
| Isolator Material | Neoprene |
| Load Downward Compression - Maximum | 45 lbf |
| Overall Height | 2-3/4 in |
| Rated Capacity - Maximum | 45 lb |
| Rated Deflection - Minimum | 0.18 in |
| Operating Temperature - Maximum | 158 deg F |
| Includes Spring | Spring Included |
| Operating Temperature - Minimum | 14 deg F |
| Package Quantity | 1 |
