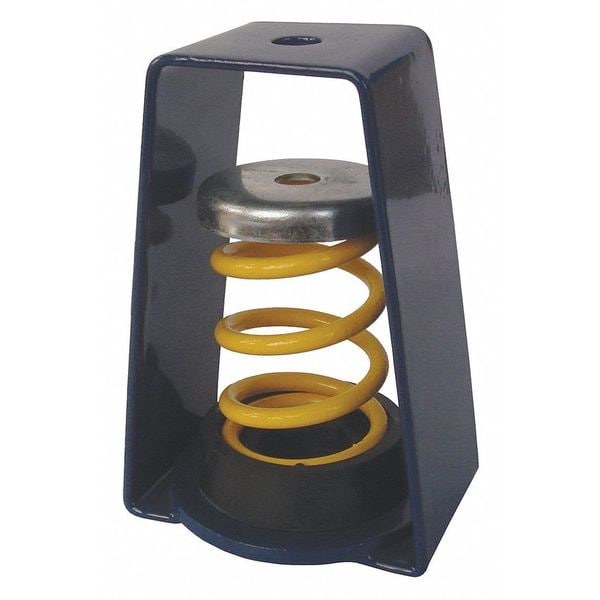

Hanger Vibration Isolator, 230 to 310 lb.
| Item | Hanger-Mount Vibration Isolator |
|---|---|
| Isolator Type | Spring |
| Capacity Range | 230 to 310 lb |
| Deflection Range | 3/4 to 1 in |
| Max. Rod Dia. | 5/8 in |
| Lower Rod Penetration | 4 in |
| Spring Color | Yellow |
| Height | 5-3/4 in |
| Width | 3-1/4 in |
| Color Mark | Not Applicable |
| Includes Spring | Spring Included |
| Durometer | Not Applicable |
| Rated Capacity - Minimum | 230 lb |
| Isolator Material | Spring |
| Rated Deflection - Maximum | 1 in |
| Load Downward Compression - Maximum | 310 lbf |
| Bushing Material | Spring |
| Rod Diameter - Maximum | 5/8 in |
| Rated Capacity - Maximum | 310 lb |
| Operating Temperature - Minimum | -4 deg F |
| Load Sideways Shear - Maximum | Not Applicable |
| Overall Depth | 5-3/4 in |
| Operating Temperature - Maximum | 176 deg F |
| Overall Width | 3-1/4 in |
| Rated Deflection - Minimum | 3/4 in |
| Overall Height | 5-3/4 in |
| Package Quantity | 1 |
